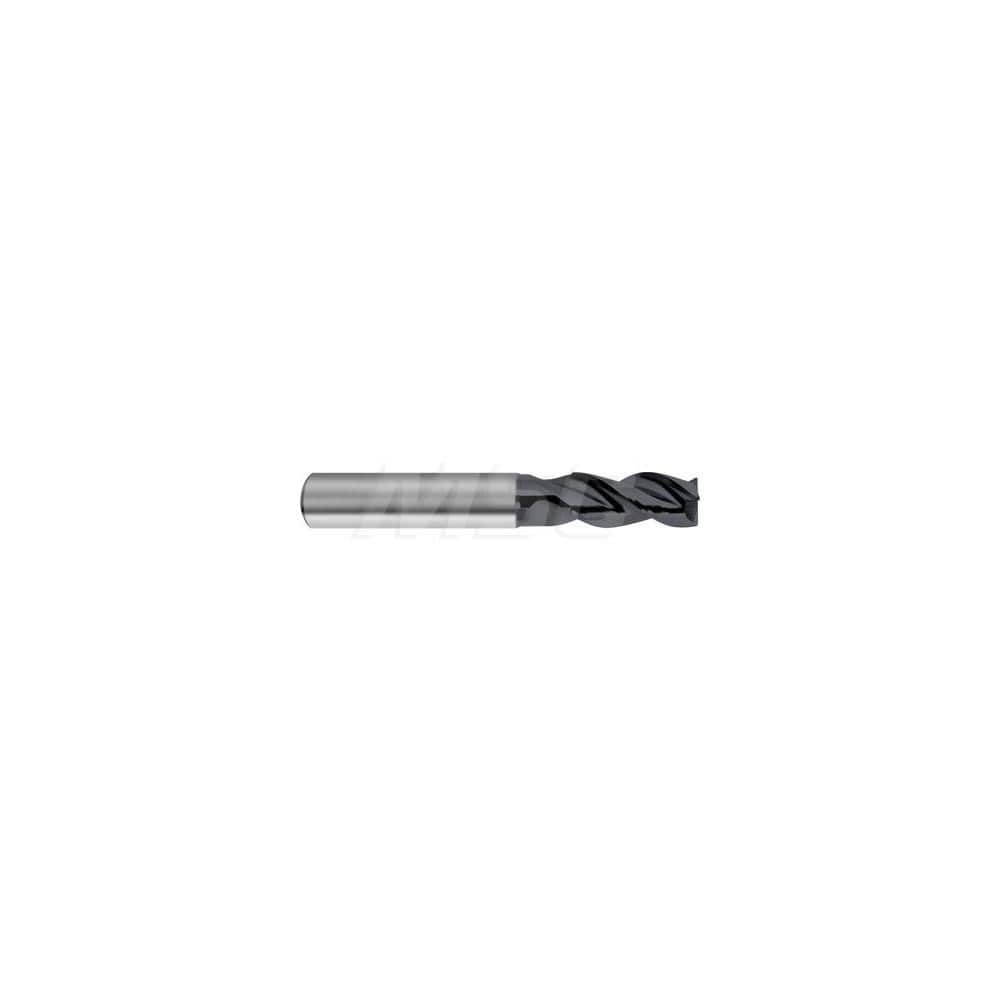

Corner Radius End Mill: 3 Flutes, Solid Carbide 39, 40 & 41 ° Helix, Carbo Coated, Corner Chamfer End, Centercutting, Series 6978
Item #: 13171913
Brand: Guhring
Model #: 9069780120000
Product Specifications
| Chamfer Width (mm) | 0.120 |
| Mill Diameter (mm) | 12.00 |
| Chamfer Angle | 45.000 |
| Length of Cut (mm) | 26.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Chamfer |
| Length Type | Standard |
| Flute Type | Spiral |
| Helix Angle | 39; 40; 41 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (mm) | 12.0000 |
| Reach Length (mm) | 36.00 |
| Overall Length (mm) | 83.00 |
| Minimum Helix Angle | 39.00 |
| Maximum Helix Angle | 41.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Additional Information | Nano Polished Cutting Edges |
| Single Or Double End | Single |
| Coating/Finish | Carbo |
