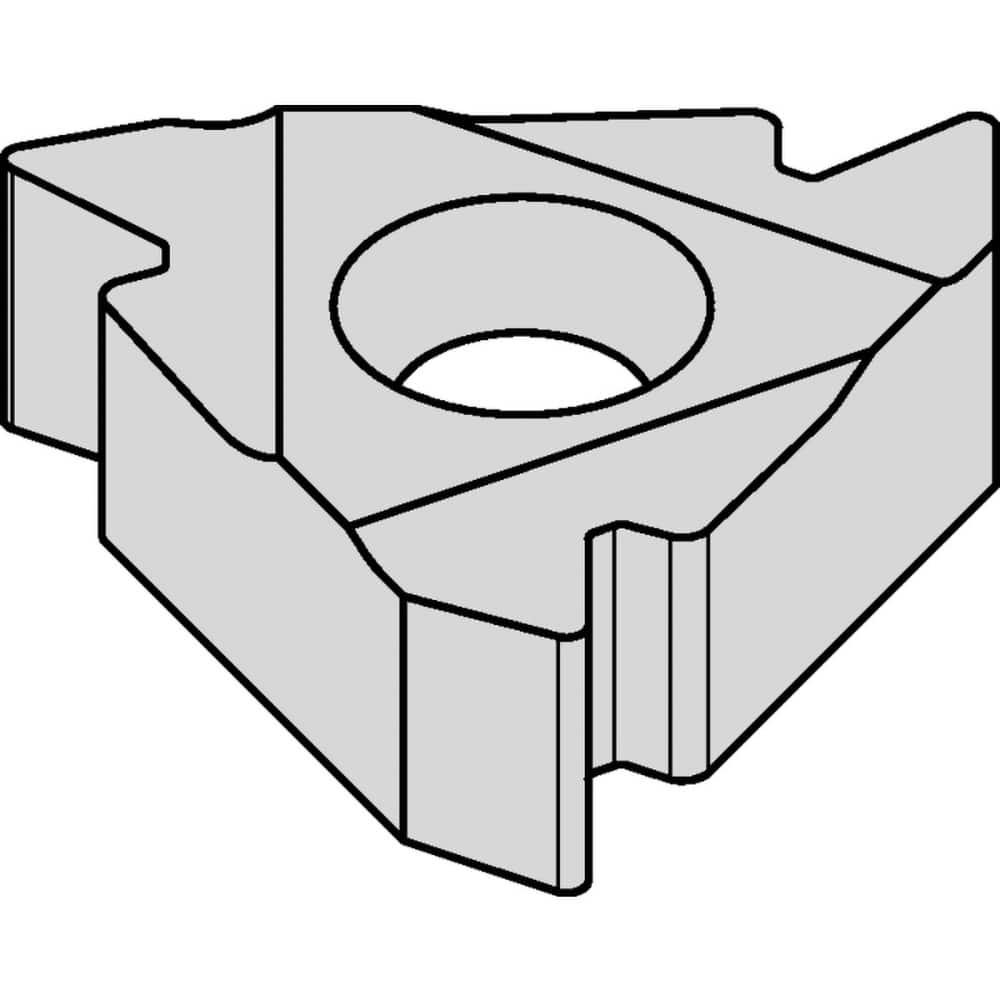

Laydown Threading Inserts; Insert Size Code: 8; Manufacturer Grade: KC5025; Threads Per Inch: 16.00 to 48.00; Thread Type: Partial Profile 60 ™; Pitch (mm): 1.50; Insert Hand: Right Hand; Thickness (mm): 1.98; Included Angle: 60; Series: LT Threading; Ins
Item #: 13201983
Brand: Kennametal
Model #: 6733747
Product Specifications
| Insert Size Code | 8 |
| Manufacturer Grade | KC5025 |
| Thread Type | Partial Profile 60? |
| Pitch (mm) | 1.50 |
| Insert Hand | Right Hand |
| Thickness (mm) | 1.98 |
| Included Angle | 60 |
| Series | LT Threading |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Corner Radius (Decimal Inch) | 0.0018 |
| Corner Radius (mm) | 0.04 |
| Number of Teeth Per Side | 1 |
| Manufacturers Catalog Number | LT08NRA60 |
| Teeth Per Inch | 16.00 to 48.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0780 |
| Coating/Finish | TiAlN |
