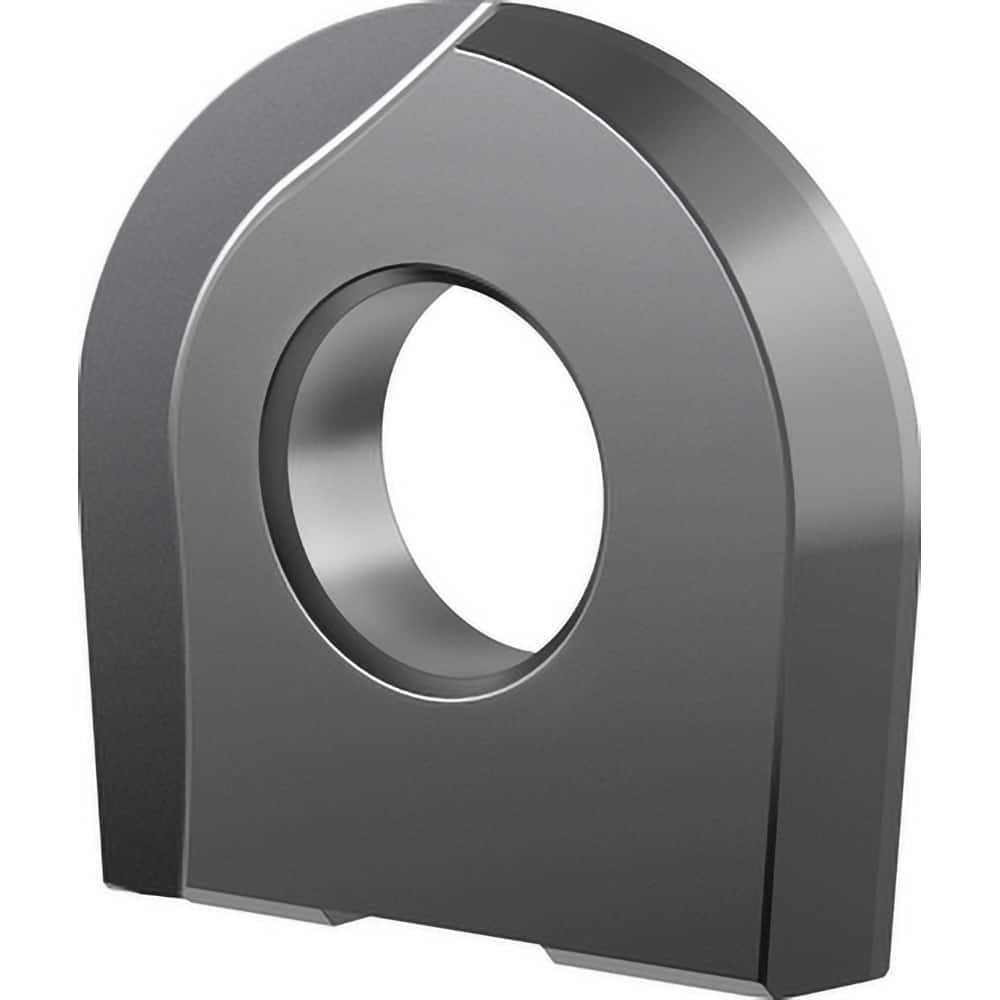

Milling Insert: KDMB12M0ERSF, KCPK10, Cast Iron & Steel N/A Finish, 0.4724″ OAW
Item #: 13202056
Brand: Kennametal
Model #: 6784054
Product Specifications
| Insert Style | Ball Nose |
| Insert Size | KDMB12 |
| Insert Material | Cast Iron; Steel |
| Manufacturer Grade | KCPK10 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Insert Hand | Right Hand |
| Series | KDMB |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.00 |
| Ansi Code | KDMB12M0ERSF |
| Iso Code | KDMB12M0ERSF |
| Manufacturers Catalog Number | KDMB12M0ERSF |
| Chip Breaker | SF |
| Cutting Direction | Right Hand |
| Coating/Finish | Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Width (Mm - 2 Decimals) | 12.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0984 |
| Length (Decimal Inch - 4 Decimals) | 0.4720 |
