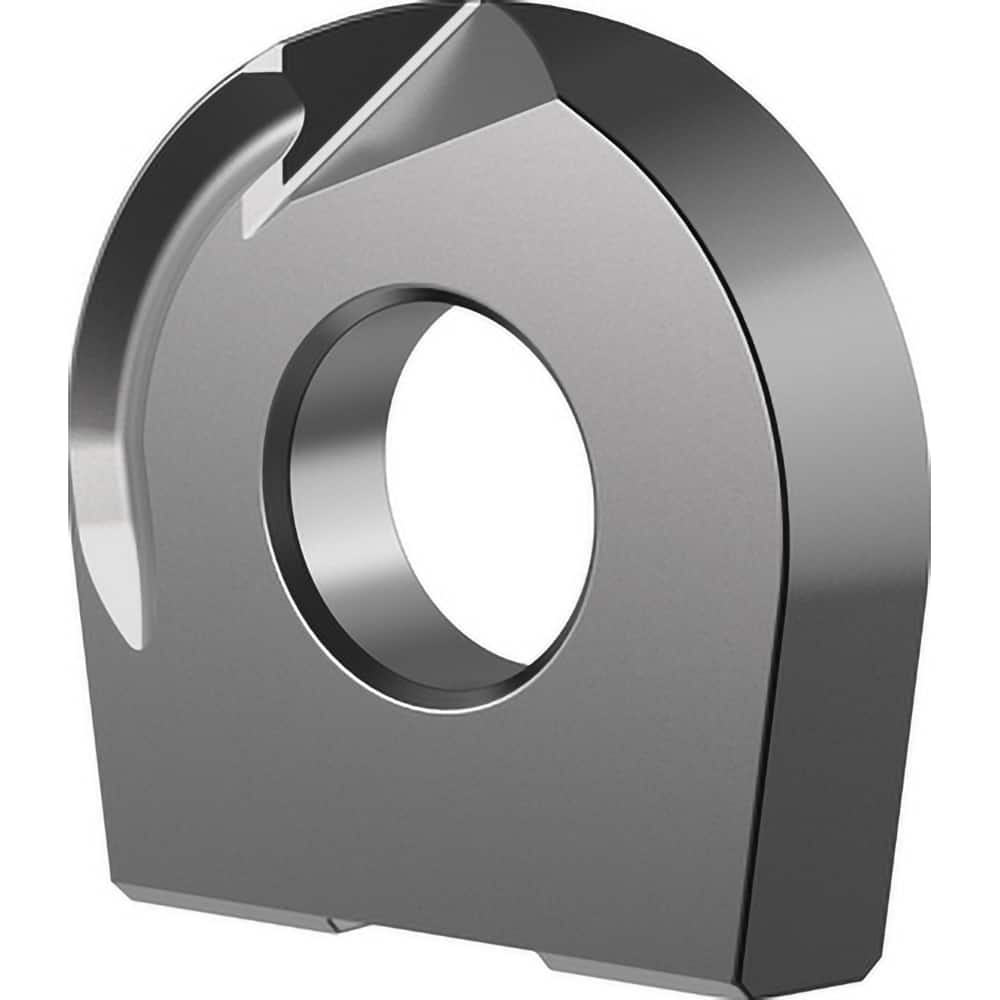

Milling Insert: KDMB0750M0ERGC, KCPH15, N/A Finish, 0.7500″ OAW
Item #: 13202247
Brand: Kennametal
Model #: 6784081
Product Specifications
| Insert Style | Ball Nose |
| Insert Size | KDMB0750 |
| Manufacturer Grade | KCPH15 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Corner Radius (mm) | 9.52 |
| Insert Hand | Right Hand |
| Series | KDMB |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.00 |
| Ansi Code | KDMB0750M0ERGC |
| Iso Code | KDMB0750M0ERGC |
| Manufacturers Catalog Number | KDMB0750M0ERGC |
| Chip Breaker | GC |
| Cutting Direction | Right Hand |
| Coating/Finish | AlCrON |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Width (Mm - 2 Decimals) | 19.05 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
| Length (Decimal Inch - 4 Decimals) | 0.6110 |
