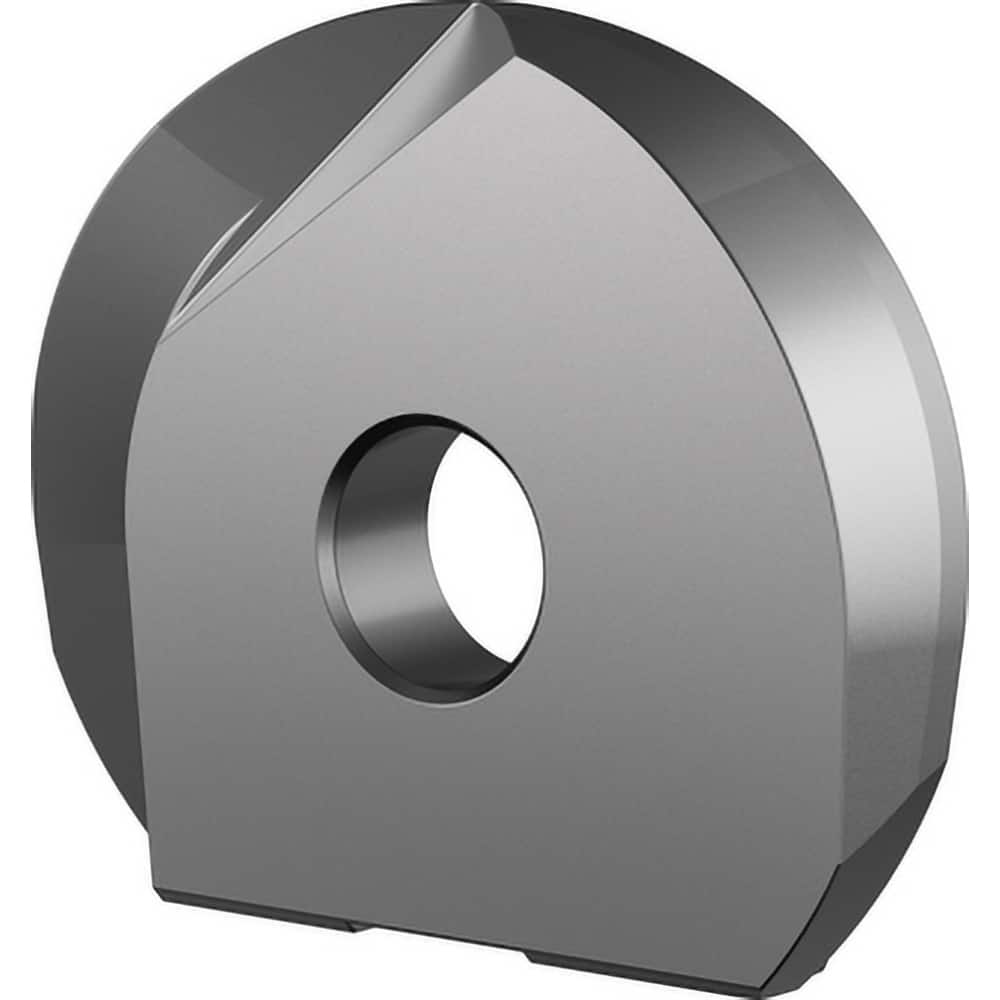

Milling Insert: KDMB1250M0ERGP, KCPK10, Cast Iron & Steel N/A Finish, 1.2500″ OAW
Item #: 13202361
Brand: Kennametal
Model #: 6784090
Product Specifications
| Insert Style | Ball Nose |
| Insert Size | KDMB1250 |
| Insert Material | Cast Iron; Steel |
| Manufacturer Grade | KCPK10 |
| Length (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.6250 |
| Corner Radius (mm) | 15.87 |
| Insert Hand | Right Hand |
| Series | KDMB |
| Hole Diameter (Mm) ( - 0 Decimals) | 8.00 |
| Ansi Code | KDMB1250M0ERGP |
| Iso Code | KDMB1250M0ERGP |
| Manufacturers Catalog Number | KDMB1250M0ERGP |
| Chip Breaker | GP |
| Cutting Direction | Right Hand |
| Coating/Finish | Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 1.2500 |
| Width (Mm - 2 Decimals) | 31.75 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1970 |
| Length (Decimal Inch - 4 Decimals) | 1.0000 |
