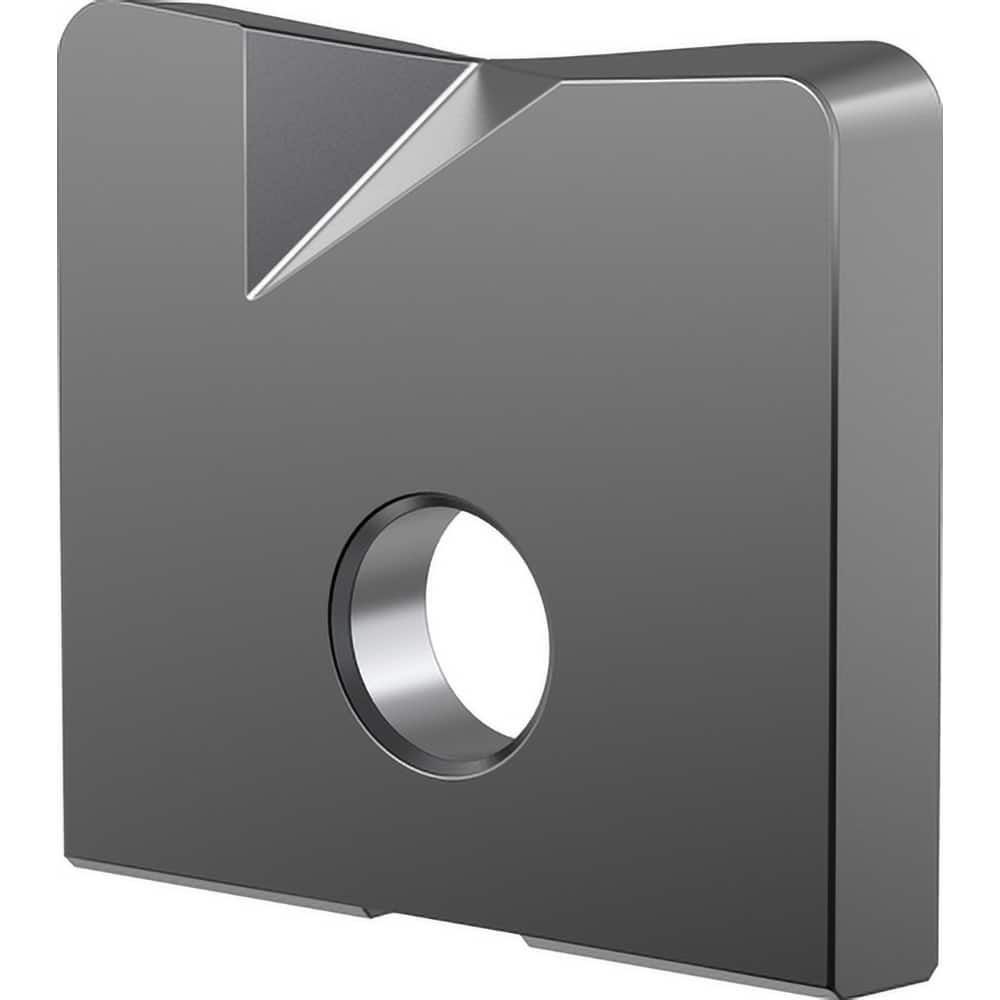

Milling Insert: KDMS3220ERGN, KCPK10, Cast Iron & Steel N/A Finish, 1.2598″ OAW
Item #: 13202833
Brand: Kennametal
Model #: 6784132
Product Specifications
| Insert Style | Toroidal |
| Insert Size | KDMS3220 |
| Insert Material | Cast Iron; Steel |
| Manufacturer Grade | KCPK10 |
| Corner Radius (Decimal Inch) | 0.1020 |
| Corner Radius (mm) | 2.60 |
| Insert Hand | Right Hand |
| Series | KDMS |
| Hole Diameter (Mm) ( - 0 Decimals) | 8.00 |
| Ansi Code | KDMS3220ERGN |
| Iso Code | KDMS3220ERGN |
| Manufacturers Catalog Number | KDMS3220ERGN |
| Chip Breaker | GN |
| Cutting Direction | Right Hand |
| Coating/Finish | Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 1.2598 |
| Width (Mm - 2 Decimals) | 32.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
| Length (Decimal Inch - 4 Decimals) | 1.1020 |
