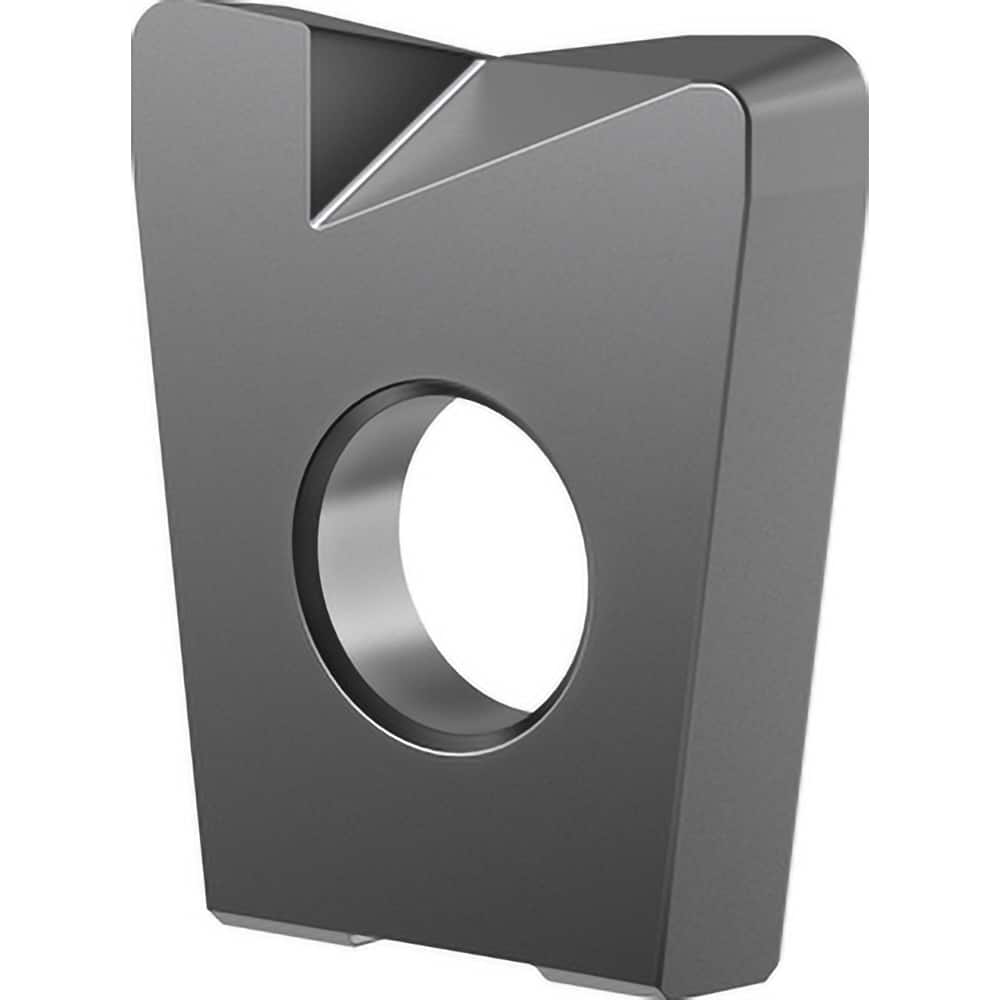

Milling Insert: KDMT2510ERGN, KCPK10, Cast Iron & Steel N/A Finish, 0.9843″ OAW
Item #: 13203385
Brand: Kennametal
Model #: 6784170
Product Specifications
| Insert Style | Toroidal |
| Insert Size | KDMT2510 |
| Insert Material | Cast Iron; Steel |
| Manufacturer Grade | KCPK10 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Insert Hand | Right Hand |
| Series | KDMT |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.00 |
| Ansi Code | KDMT2510ERGN |
| Iso Code | KDMT2510ERGN |
| Manufacturers Catalog Number | KDMT2510ERGN |
| Chip Breaker | GN |
| Cutting Direction | Right Hand |
| Coating/Finish | Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.9843 |
| Width (Mm - 2 Decimals) | 25.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1575 |
| Length (Decimal Inch - 4 Decimals) | 0.9252 |
