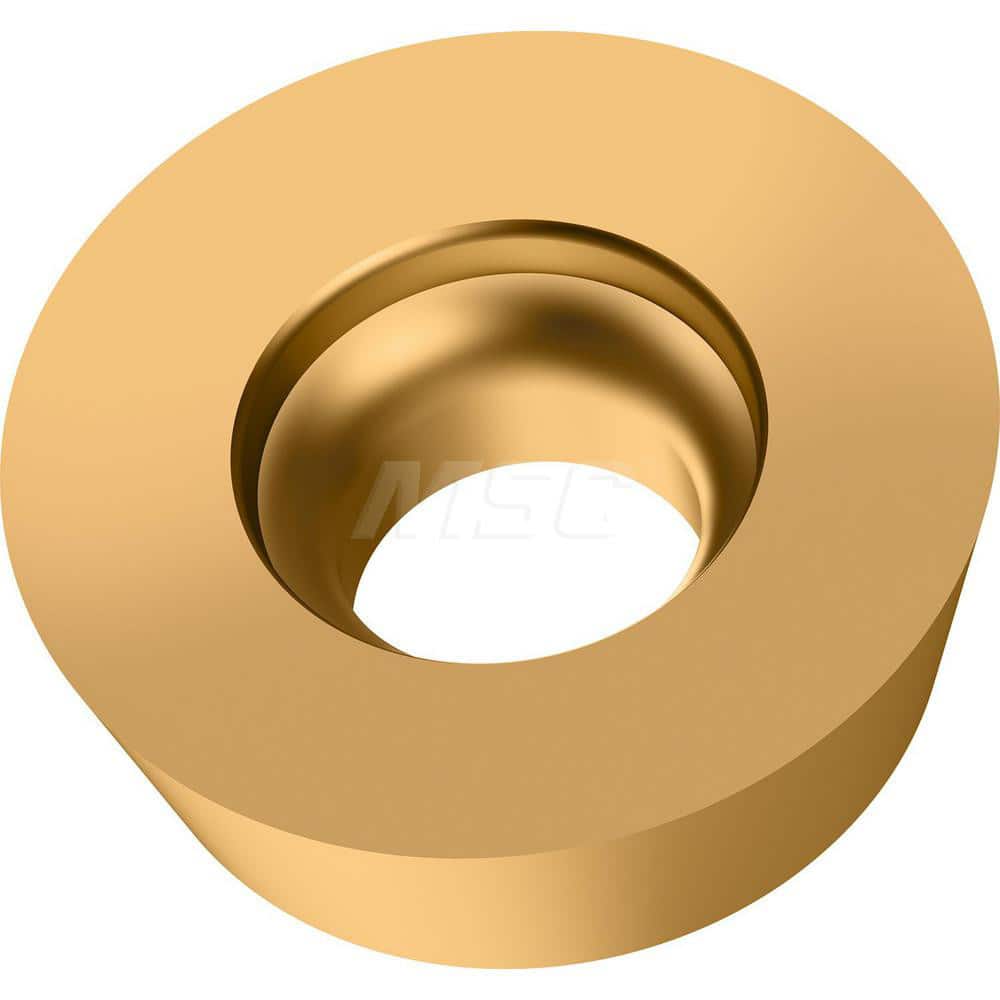

Milling Insert: WKP35S, Solid Carbide N/A Finish,
Item #: 13222005
Brand: Walter
Model #: 7924036
Product Specifications
| Insert Style | RDHX |
| Insert Size | 2006M0 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WKP35S |
| Inscribed Circle (mm) | 20.00 |
| Corner Radius (mm) | 10.00 |
| Insert Hand | Neutral |
| Series | RDHX |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.50 |
| Rake | Positive |
| Manufacturers Catalog Number | RDHX2006M0-A57 WKP35S |
| Chip Breaker | A57 |
| Cutting Direction | Neutral |
| Shape | Round |
| Thickness (mm) | 6.00 |
| Coating/Finish | TiCN+Al2O3+(TiCN) |
