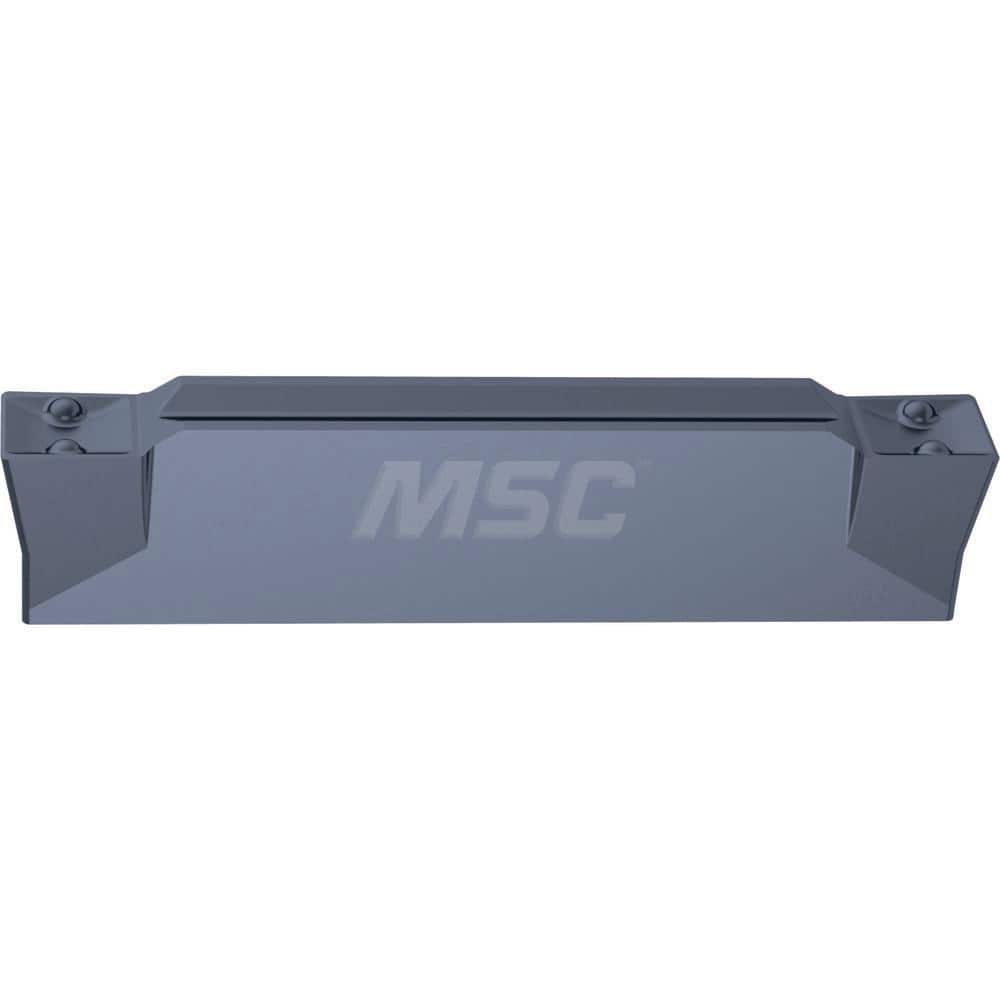

Guhring GZ222.0300.020.PP.02.N 3.00mm Cut-Off Insert
Item #: 13250964
Brand: Guhring
Model #: 9266010220300
Product Specifications
| Insert Material | Solid Carbide |
| Insert Holding Method | Self Clamp |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | PP02 |
| Cutting Tool Application | Part-Off |
| Series | 26601 |
| Overall Length (Decimal Inch) | 0.8661 |
| Manufacturers Catalog Number | GZ222.0300.020.PP.02.N |
| Maximum Depth of Cut (mm) | 21.20 |
| Insert Seat Size | 2 |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1181 |
| Overall Width | 3.00 |
| Coating/Finish | Firex |
