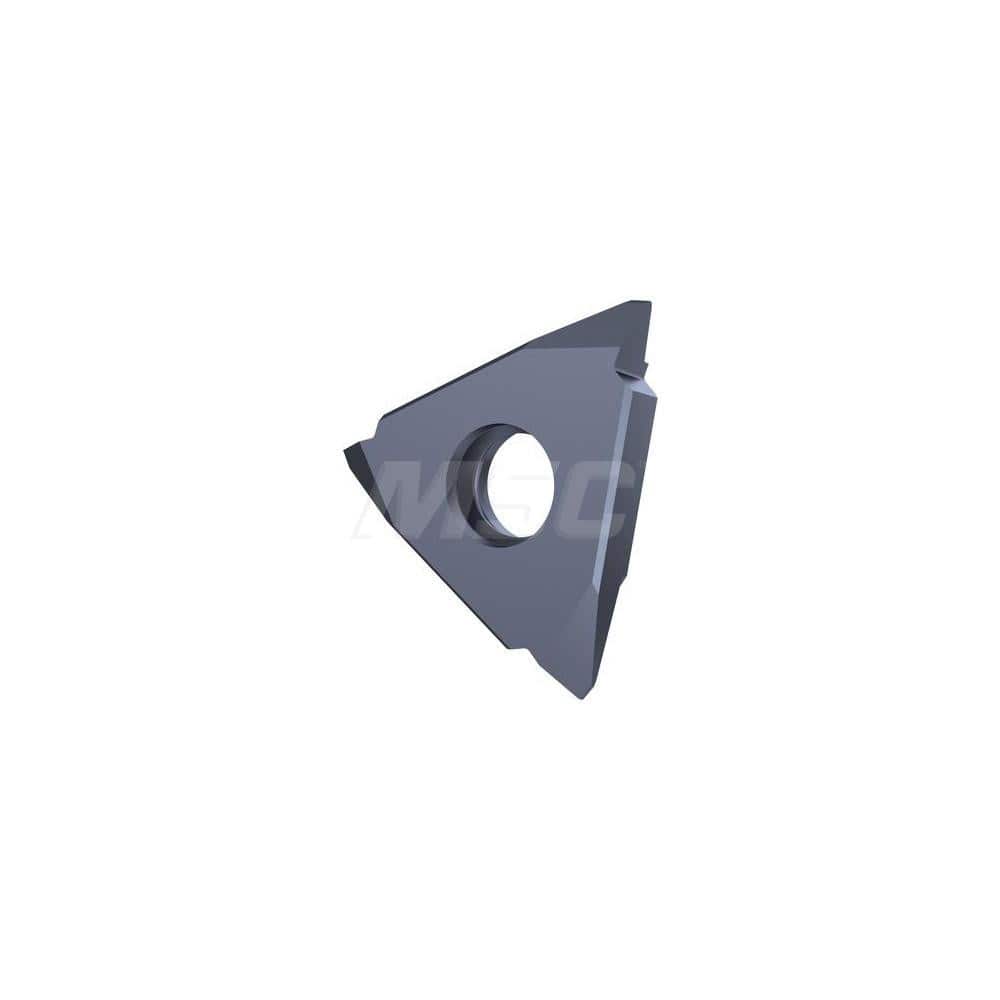

Grooving Insert: AA, Solid Carbide Firex Finish, Right Hand, 4.2 mm Cutting Width, 0.86 mm Max Depth, Series 25668
Item #: 13251459
Brand: Guhring
Model #: 9256680120200
Product Specifications
| Insert Material | Solid Carbide |
| Material Grade | Carbide |
| Cutting Width (Decimal Inch) | 0.1654 |
| Cutting Width (mm) | 4.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0340 |
| Maximum Depth of Cut (mm) | 0.86 |
| Insert Holding Method | Screw |
| Cutting Height (mm) | 12.00 |
| Insert Hand | Right Hand |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Corner Radius (mm) | 0.17 |
| Corner Radius (Decimal Inch) | 0.0067 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 27 |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Series | 25668 |
| Manufacturers Catalog Number | GG305.VW00.019.AA.04.R |
| Insert Thickness (Decimal Inch) | 0.1654 |
| Type | GG 305 |
| Chip Breaker | AA |
| Insert Seat Size | 4 |
| Inscribed Circle (mm) | 12.00 |
| Coating/Finish | Firex |
| Number Of Cutting Edges | 3 |
| Insert Thickness | 4.20 |
