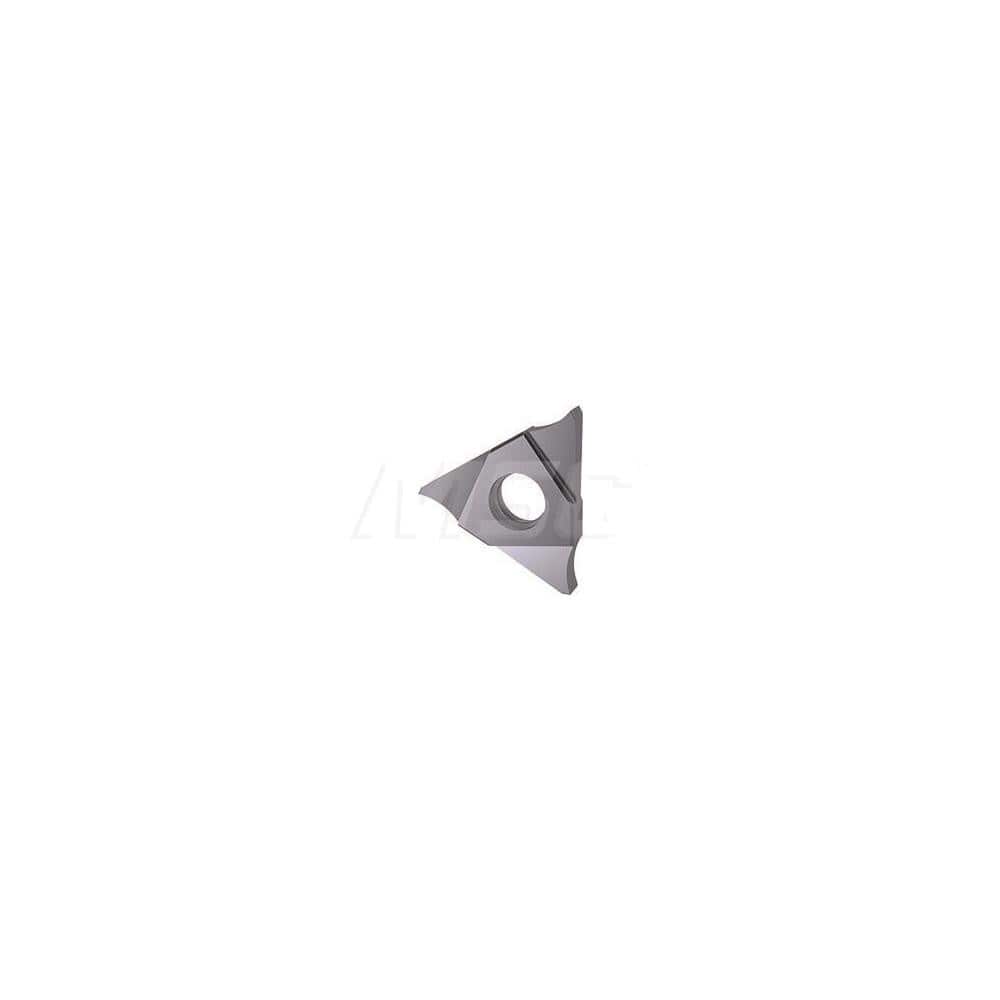

Grooving Insert: BA, Solid Carbide TiCN Finish, Neutral, 3 mm Cutting Width, 4 mm Max Depth, Series 25606
Item #: 13251939
Brand: Guhring
Model #: 9256060120090
Product Specifications
| Insert Material | Solid Carbide |
| Material Grade | Carbide |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1580 |
| Maximum Depth of Cut (mm) | 4.00 |
| Insert Holding Method | Screw |
| Cutting Height (mm) | 12.00 |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Maximum Depth Of Cut Range (mm) | 4.00 to 5.00 |
| Lead Angle | 90 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving |
| Series | 25606 |
| Manufacturers Catalog Number | GE305.0200.015.BA.04.N |
| Insert Thickness (Decimal Inch) | 0.1654 |
| Type | GE 305 |
| Chip Breaker | BA |
| Insert Seat Size | 4 |
| Inscribed Circle (mm) | 12.00 |
| Coating/Finish | TiCN |
| Number Of Cutting Edges | 3 |
| Insert Thickness | 4.20 |
