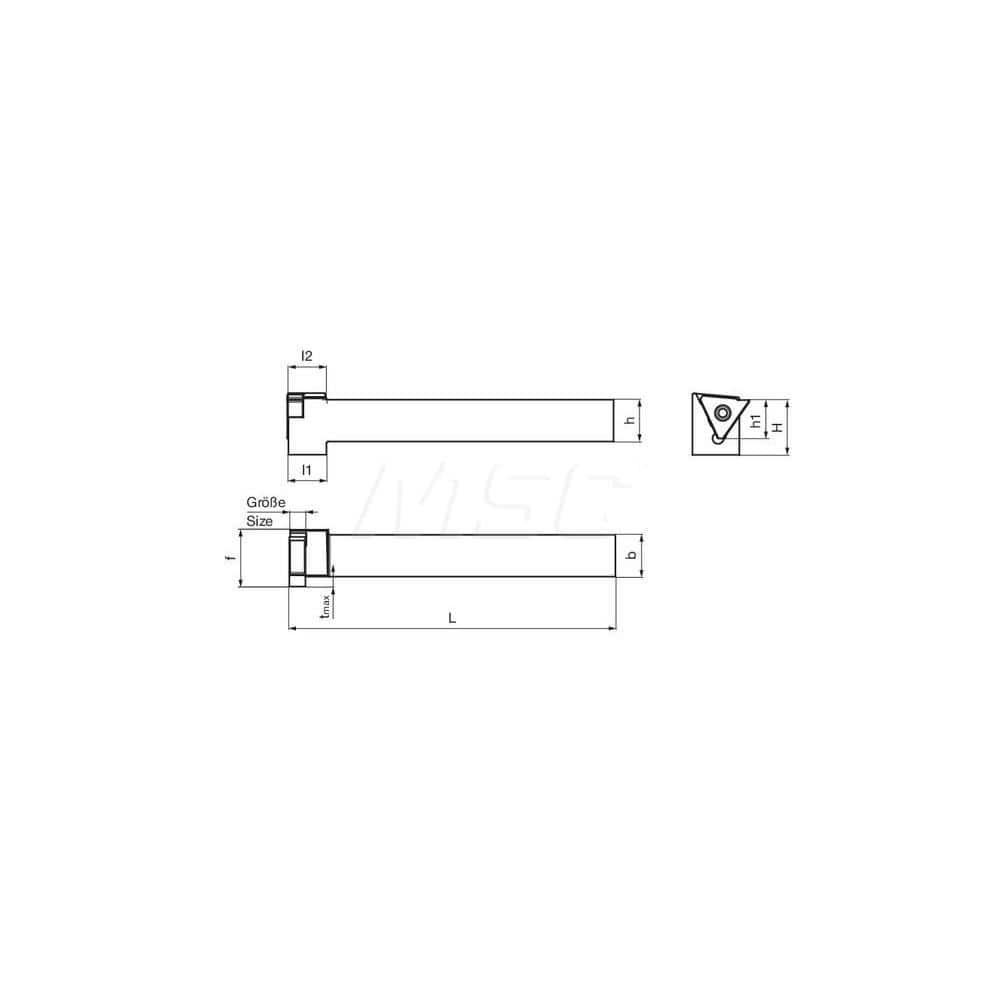

Guhring GH305.0500.500.90.06.R External Right Hand Face Grooving 90 Deg Offset Non Coolant Holder 1/2″ Square Shank
Item #: 13253000
Brand: Guhring
Model #: 9253560120340
Product Specifications
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 6 |
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.0394 |
| Toolholder Style | GH 305 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Insert Compatibility | GA 305 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Height (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | 25356 |
| Overall Length (Decimal Inch) | 5.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Axial Grooving; Radial Grooving; Radial Threading |
| Head Height (Decimal Inch) | 0.8543 |
| Head Length (Decimal Inch) | 0.5843 |
| Vibration Dampening | No |
| Multi-Use Application | Grooving; Threading |
| Mount Type | Shank |
| Manufacturers Catalog Number | GH305.0500.500.90.06.R |
| Toolholder Material | Steel |
| Coolant Through | No |
