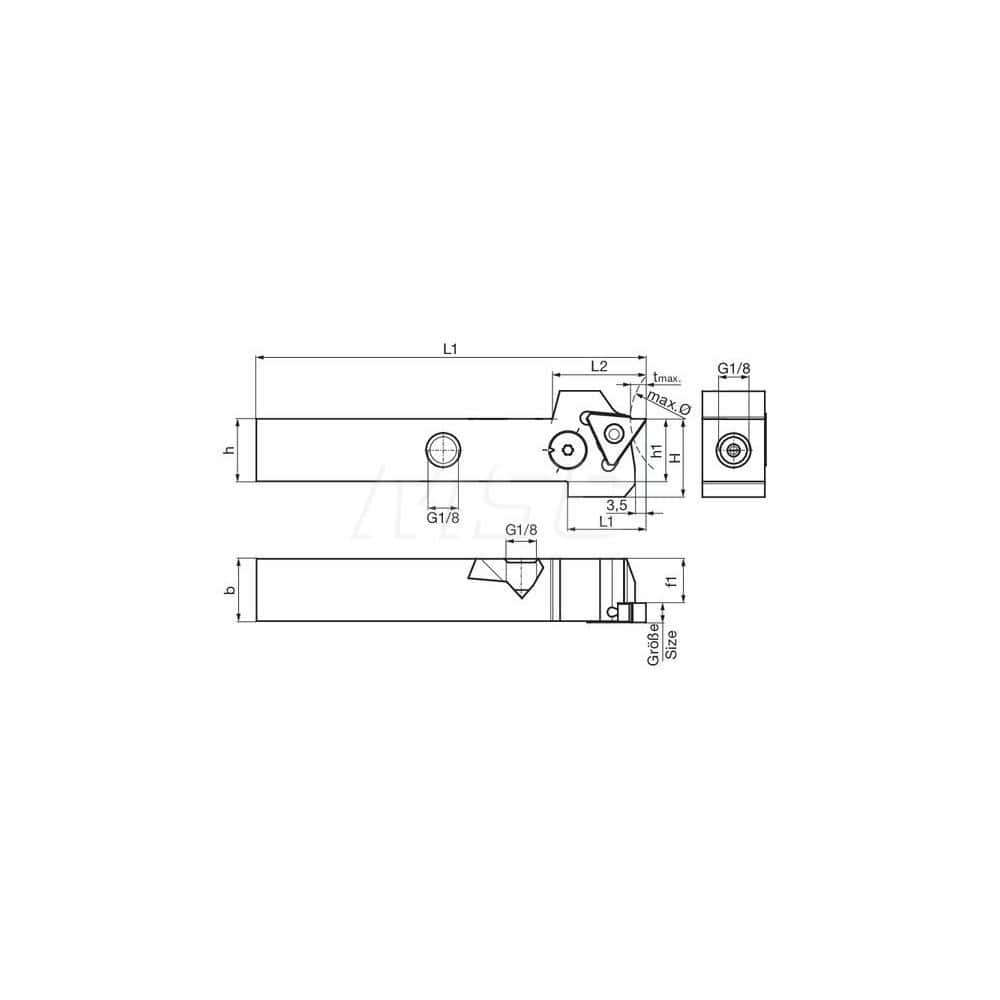

Guhring GH305.1000.600.00.06.L.IK.EST External Left Hand NonFace Grooving Radial Grooving with Adjustable Coolant Holder 1″ Square Shank
Item #: 13253257
Brand: Guhring
Model #: 9253730120260
Product Specifications
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Insert Seat Size | 6 |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Toolholder Style | GH 305 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Insert Compatibility | GE 305; GZ305 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | 25373 |
| Overall Length (Decimal Inch) | 5.9843 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Profiling; Cut-Off; Threading |
| Head Height (Decimal Inch) | 1.1969 |
| Head Length (Decimal Inch) | 1.2000 |
| Vibration Dampening | No |
| Multi-Use Application | Grooving; Profiling; Cut-Off; Threading |
| Coolant Hole Thread Size | G1/8 |
| Mount Type | Shank |
| Manufacturers Catalog Number | GH305.1000.600.00.06.L.IK.EST |
| Toolholder Material | Steel |
| Coolant Through | Yes |
