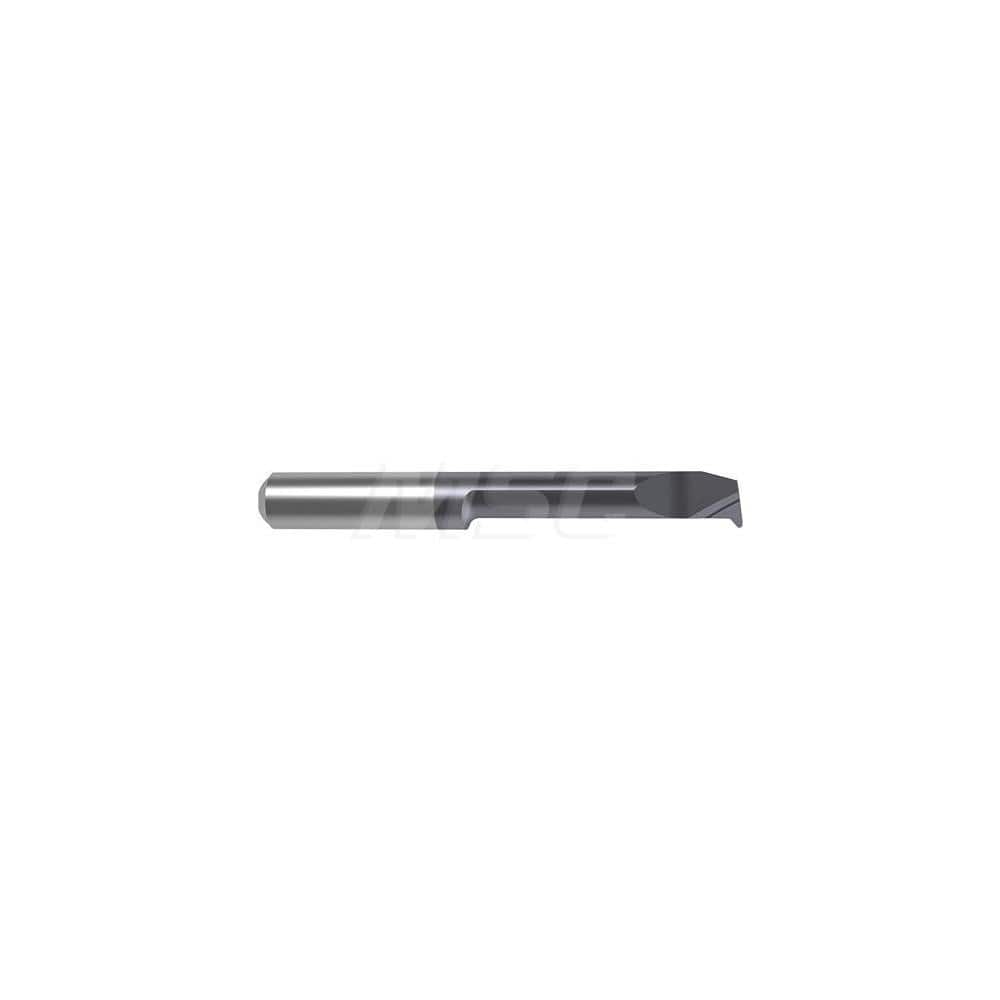

Internal Boring Bar: 0.315″ Min Bore, 1.4567″ Max Depth, Left Hand Cut, Carbide 2.4409″ OAL, 0.0039″ Corner Radius
Item #: 13262191
Brand: Guhring
Model #: 9272050080330
Product Specifications
| Boring Bar Type | Internal Boring |
| Cutting Direction | Left Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.3150 |
| Minimum Bore Diameter (mm) | 8.00 |
| Material | Carbide |
| Maximum Bore Depth (Decimal Inch) | 1.4567 |
| Maximum Bore Depth (mm) | 37.00 |
| Overall Length (mm) | 62.00 |
| Finish Coating | Nano-A |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Manufacturers Catalog Number | GT108.4777.010.37.80.L.U1 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 2.4409 |
| Primary Workpiece Material | P; S; H; K; M |
| Relief Angle | 47 |
| Secondary Workpiece Material | N |
