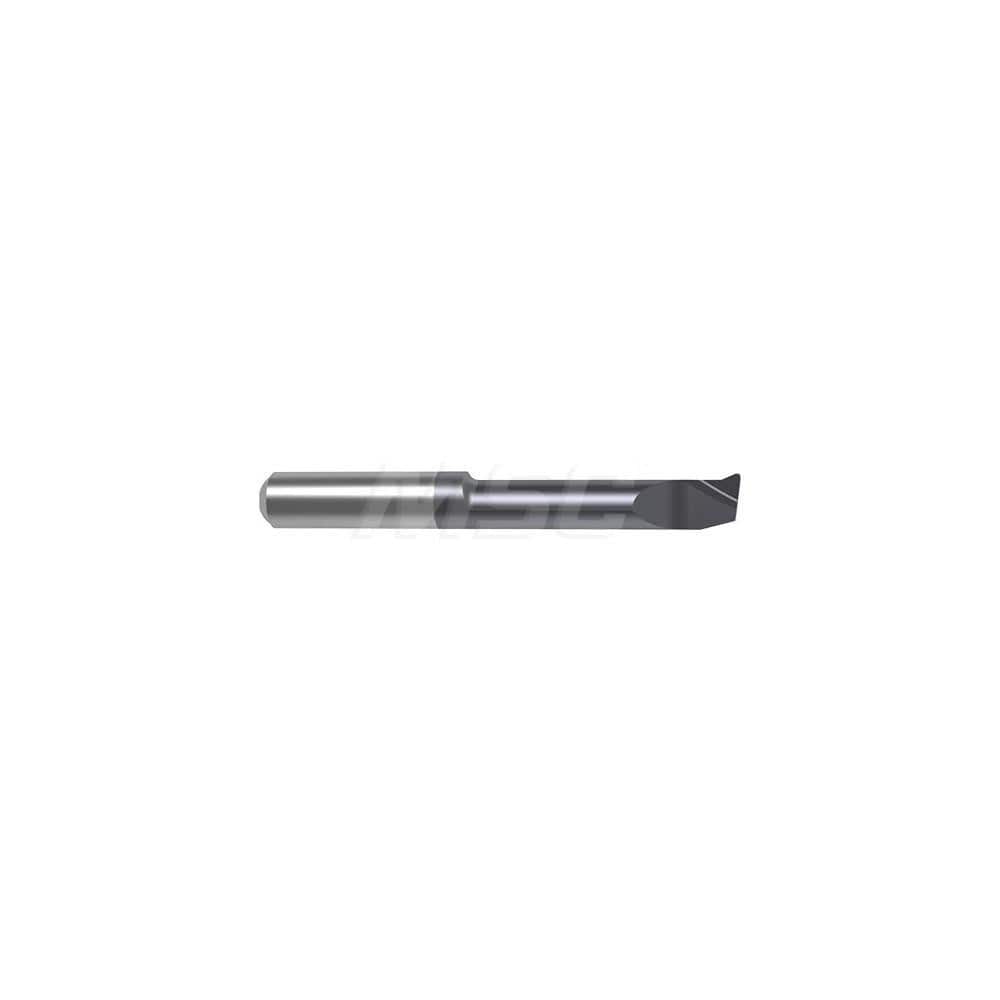

Internal Boring Bar: 0.315″ Min Bore, 1.8504″ Max Depth, Right Hand Cut, Carbide 2.8346″ OAL, 0.0039″ Corner Radius
Item #: 13262498
Brand: Guhring
Model #: 9272160081800
Product Specifications
| Boring Bar Type | Internal Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.3150 |
| Minimum Bore Diameter (mm) | 8.00 |
| Material | Carbide |
| Maximum Bore Depth (Decimal Inch) | 1.8504 |
| Maximum Bore Depth (mm) | 47.00 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 72.00 |
| Finish Coating | Nano-A |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Series | GJ 108 |
| Manufacturers Catalog Number | GJ108.2377.010.47.80.R.U1 |
| Maximum Depth of Cut (mm) | 0.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0236 |
| Overall Length (Decimal Inch) | 2.8346 |
| Primary Workpiece Material | P; S; H; K; M |
| Relief Angle | 23 |
| Secondary Workpiece Material | N |
