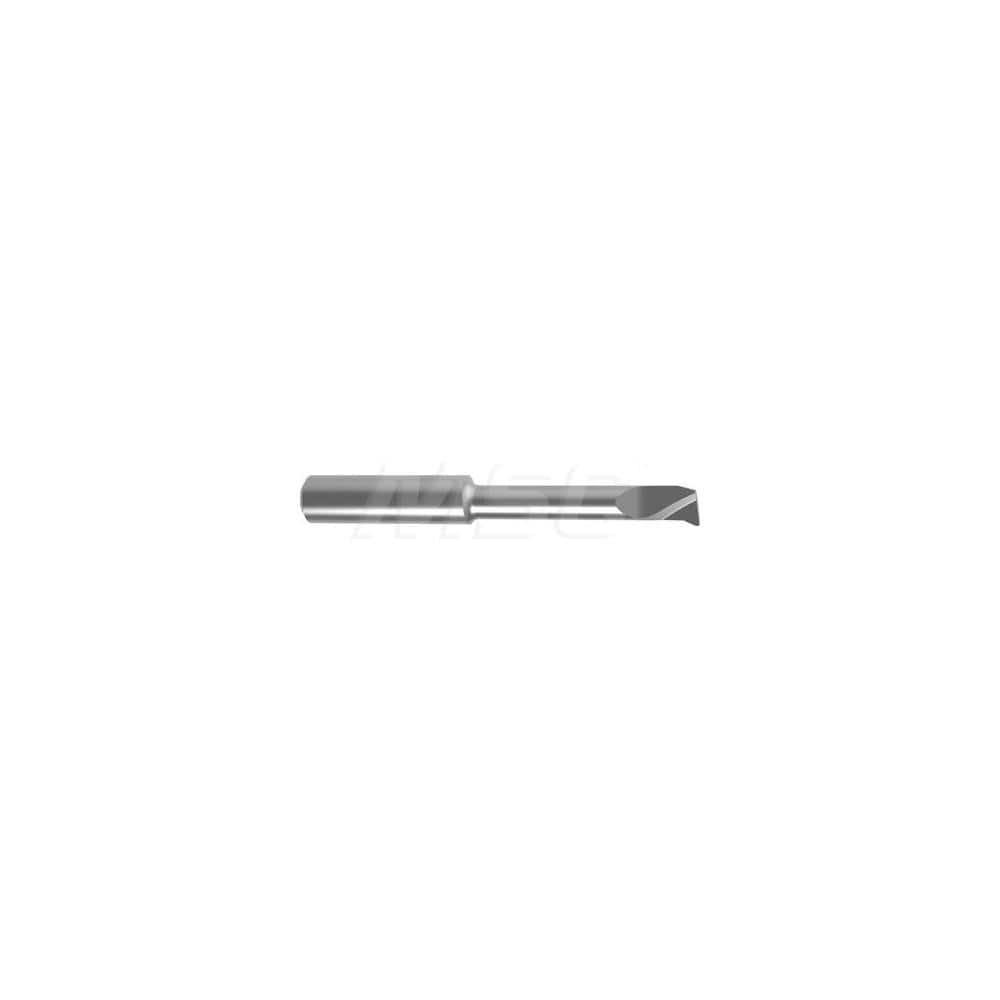

Internal Boring Bar: 0.2756″ Min Bore, 1.8504″ Max Depth, Left Hand Cut, Carbide 2.8346″ OAL, 0.0079″ Corner Radius
Item #: 13262894
Brand: Guhring
Model #: 9271190083800
Product Specifications
| Boring Bar Type | Internal Boring |
| Cutting Direction | Left Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.2756 |
| Minimum Bore Diameter (mm) | 7.00 |
| Material | Carbide |
| Maximum Bore Depth (Decimal Inch) | 1.8504 |
| Maximum Bore Depth (mm) | 47.00 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 72.00 |
| Finish Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Series | GJ 108 |
| Manufacturers Catalog Number | GJ108.2367.020.47.70.L.B1 |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Overall Length (Decimal Inch) | 2.8346 |
| Primary Workpiece Material | N |
| Relief Angle | 23 |
| Secondary Workpiece Material | P; K |
