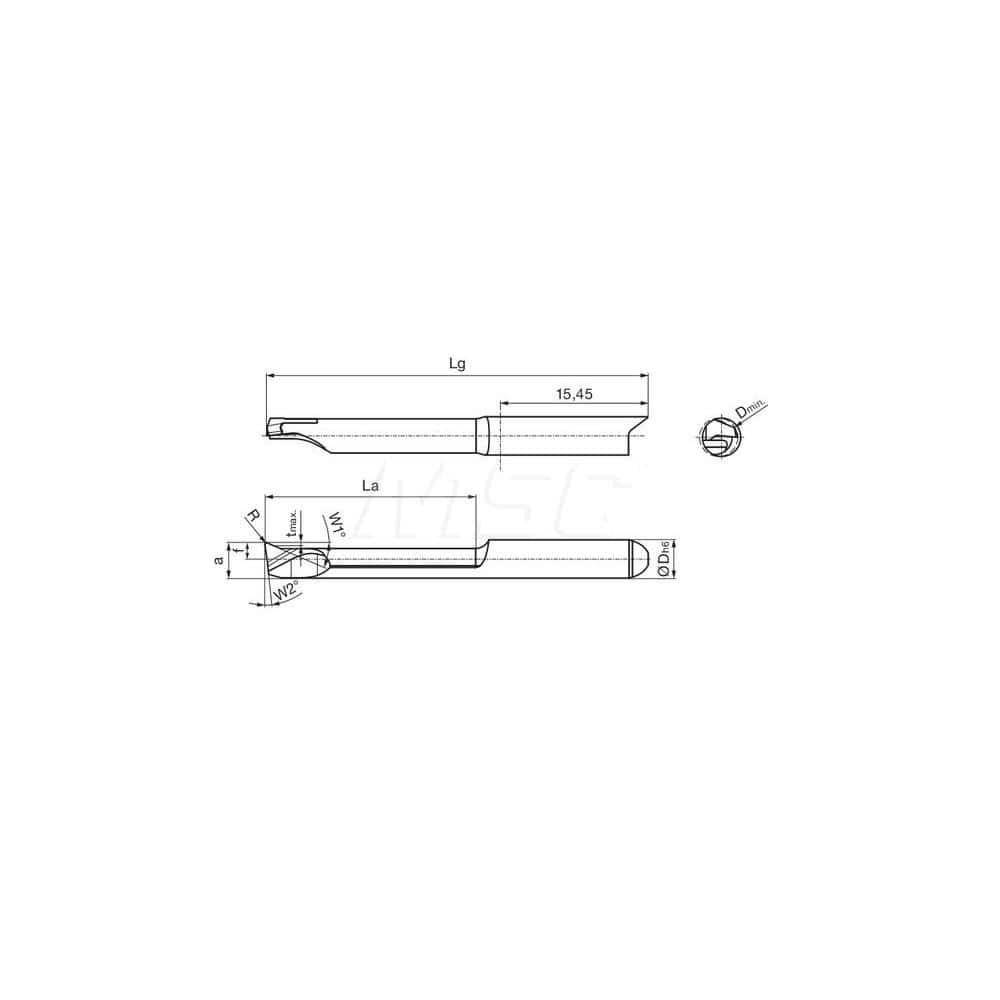

Internal Boring Bar: 0.1575″ Min Bore, 0.4724″ Max Depth, Left Hand Cut, Carbide 1.1811″ OAL, 0.0079″ Corner Radius
Item #: 13263355
Brand: Guhring
Model #: 9250570040520
Product Specifications
| Boring Bar Type | Internal Boring |
| Cutting Direction | Left Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1575 |
| Minimum Bore Diameter (mm) | 4.00 |
| Material | Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.4724 |
| Maximum Bore Depth (mm) | 12.00 |
| Shank Diameter (mm) | 4.00 |
| Overall Length (mm) | 30.00 |
| Finish Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Series | GT 104 |
| Manufacturers Catalog Number | GT104.2337.020.12.40.L |
| Maximum Depth of Cut (mm) | 0.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0118 |
| Overall Length (Decimal Inch) | 1.1811 |
| Primary Workpiece Material | N |
| Relief Angle | 23 |
| Secondary Workpiece Material | P; K |
