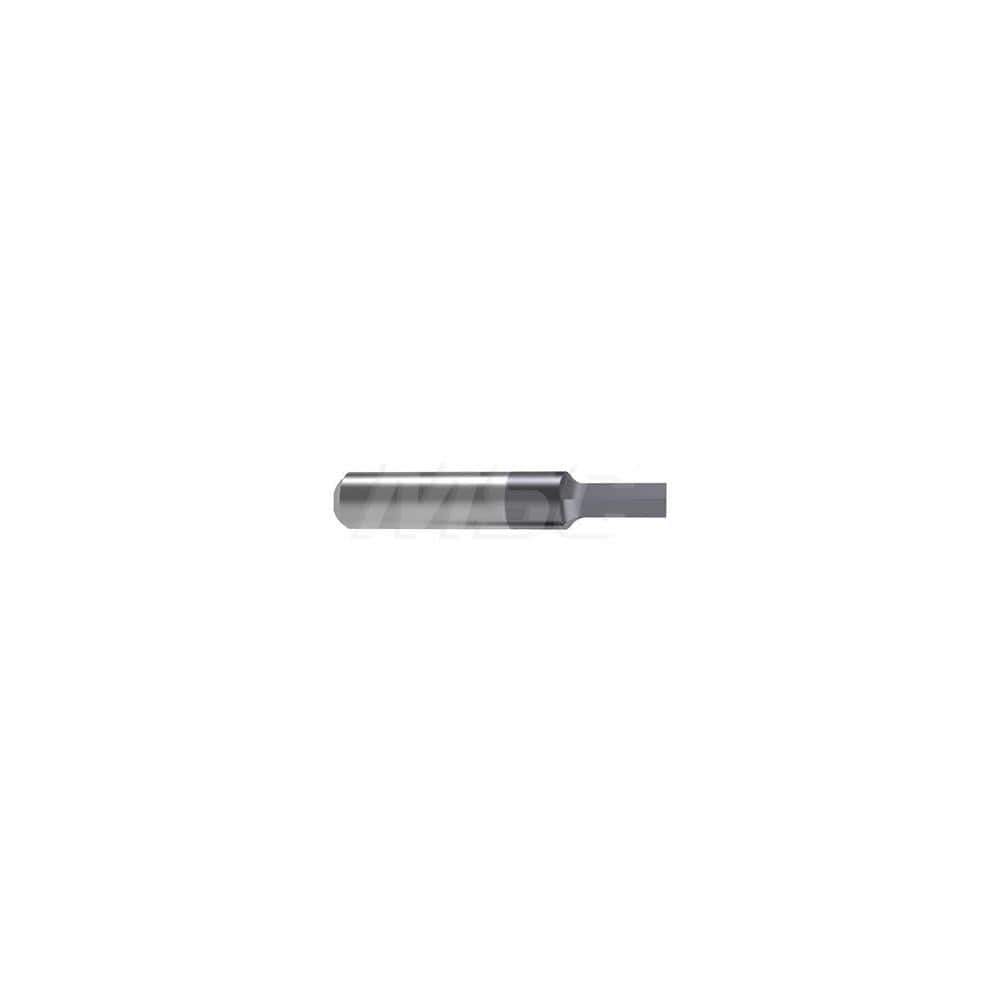

Internal Boring Bar: 0.1969″ Min Bore, 0.3937″ Max Depth, Neutral, Carbide 1.4566″ OAL, 0.0039″ Corner Radius
Item #: 13264338
Brand: Guhring
Model #: 9258970060030
Product Specifications
| Boring Bar Type | Internal Boring |
| Cutting Direction | Neutral |
| Minimum Bore Diameter (Decimal Inch) | 0.1969 |
| Minimum Bore Diameter (mm) | 5.00 |
| Material | Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.3937 |
| Maximum Bore Depth (mm) | 10.00 |
| Shank Diameter (mm) | 6.00 |
| Overall Length (mm) | 37.00 |
| Finish Coating | Nano-A |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Series | GN 106 |
| Manufacturers Catalog Number | GN106.SW50.010.09.50.N.U1 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Overall Length (Decimal Inch) | 1.4566 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | P; K; M |
