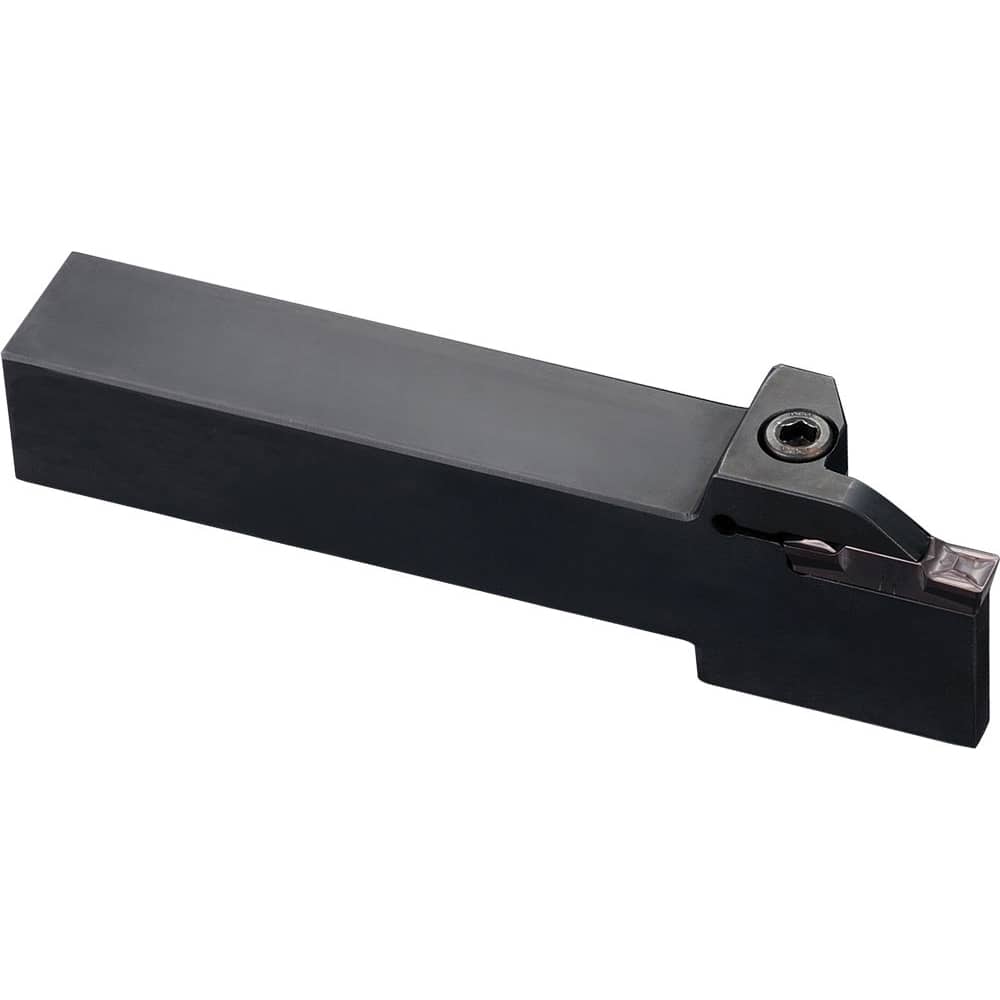

Kyocera - Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Neutral ; Maximum Depth of Cut: 1.1811 ; Maximum Depth of Cut (Inch): 1.1811 ; Maximum Depth of Cut (Decimal Inch): 1.1811
Item #: 13351028
Brand: Kyocera
Model #: 8834771
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Neutral ; Maximum Depth of Cut: 1.1811 ; Maximum Depth of Cut (Inch): 1.1811 ; Maximum Depth of Cut (Decimal Inch): 1.1811
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut | 1.1811 |
| Maximum Depth of Cut (Inch) | 1.1811 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 5.90000 |
| Toolholder Style | KGD |
| Insert Compatibility | GDM6?; GDMS6?; GDG6?; GDGS6? |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Series | KGD |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; External Grooving |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8900 |
| Head Length (Decimal Inch) | 1.7900 |
| Manufacturers Catalog Number | KGDL166T30 |
| ISO Number | KGDL166T30 |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Cutting Width (mm) | 6.000 |
