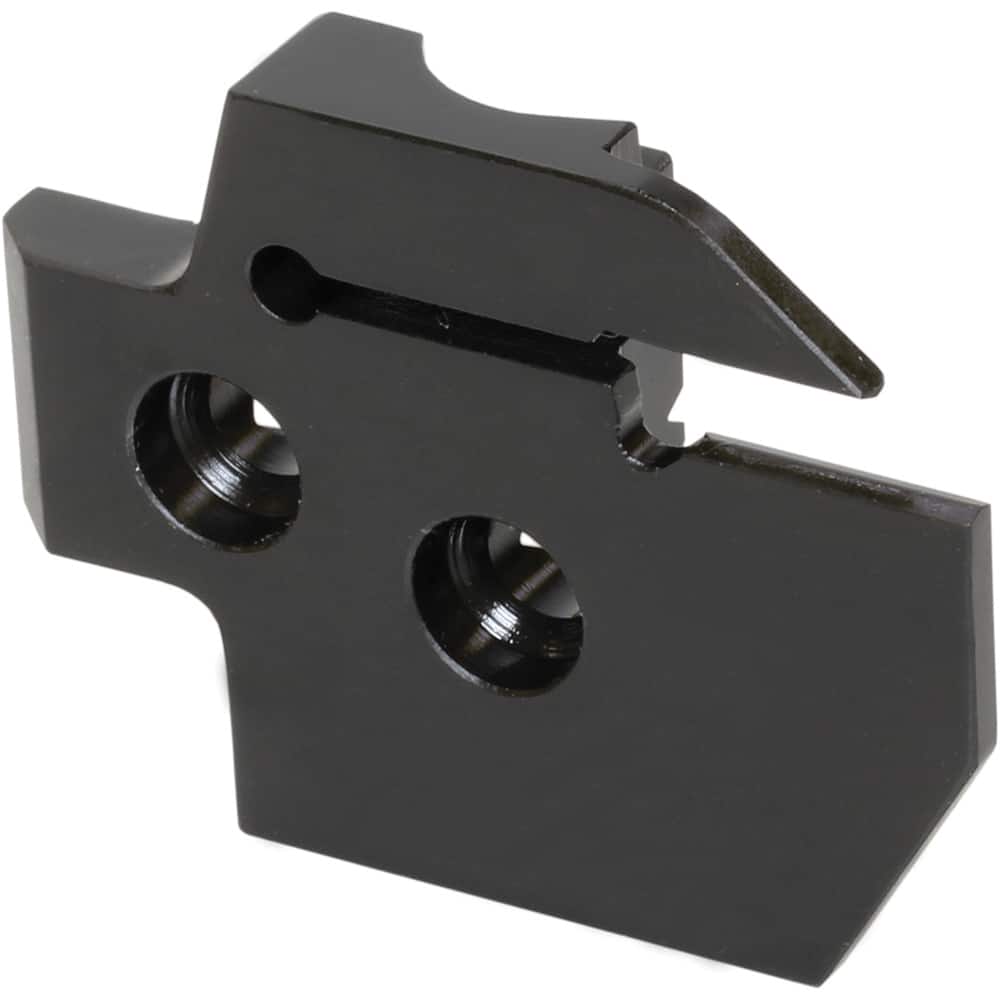

Kyocera - Indexable Grooving Blades; Cutting Direction: Left Hand ; Minimum Groove Width (mm): 4.00 ; Maximum Insert Width (mm): 5.00 ; Maximum Depth of Cut (mm): 25.20 ; Blade Style: KGD ; Series: KGD
Item #: 13351036
Brand: Kyocera
Model #: 8834779
Product Specifications
Indexable Grooving Blades; Cutting Direction: Left Hand ; Minimum Groove Width (mm): 4.00 ; Maximum Insert Width (mm): 5.00 ; Maximum Depth of Cut (mm): 25.20 ; Blade Style: KGD ; Series: KGD
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Insert Width (mm) | 5.00 |
| Maximum Depth of Cut (mm) | 25.20 |
| Blade Style | KGD |
| Series | KGD |
| Blade Height (mm) | 41.50 |
| Maximum Groove Width (mm) | 5.00 |
| Blade Overall Length (mm) | 59.20 |
| Manufacturers Catalog Number | KGDL4T25C |
| Insert Holding Method | Screw |
| Single or Double End | Single |
| Complete Insert Compatibility | GDM4?; GDMS4?; GDG4?; GDM5?; GDMS5?; GDG5? |
