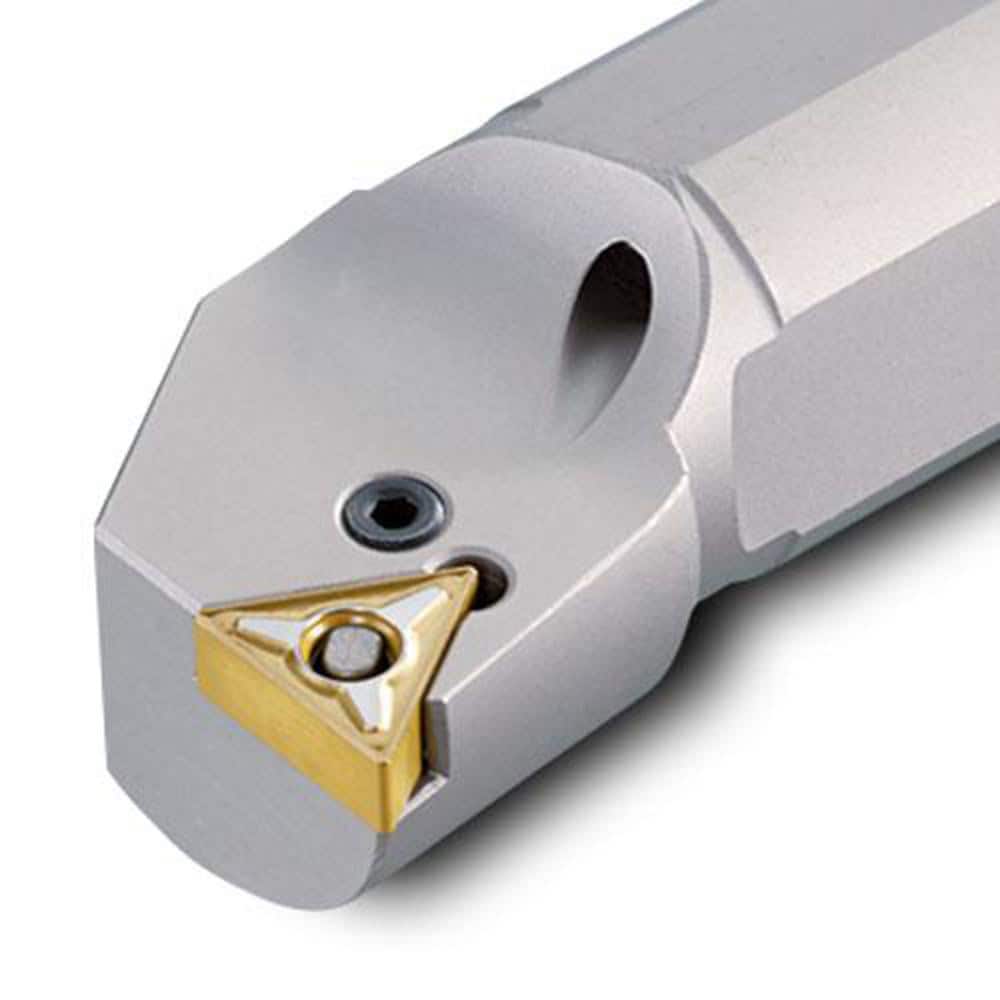

Indexable Boring Bar: A12S-HTFNR-2.53, 91.00° N/A Steel 10.0000″ OAL, Lever,
Item #: 13388277
Brand: Ingersoll Cutting Tools
Model #: 6116537
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
| Minimum Bore Diameter (Inch) | 1 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Maximum Bore Depth (Inch) | 3 |
| Toolholder Style | HTFNR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 10.00 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | TN..331 |
| Insert Holding Method | Lever |
| Compatible Insert Shape | Trigon |
| Insert Included | Yes |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 91.00 |
| Series | A-HTFNR/L (Gold Rhino) |
| Insert Inscribed Circle (Inch) | 5/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.3130 |
| Compatible Insert Thickness (Decimal Inch) | 0.1870 |
| Cutting Tool Application | Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Coolant Through | Yes |
