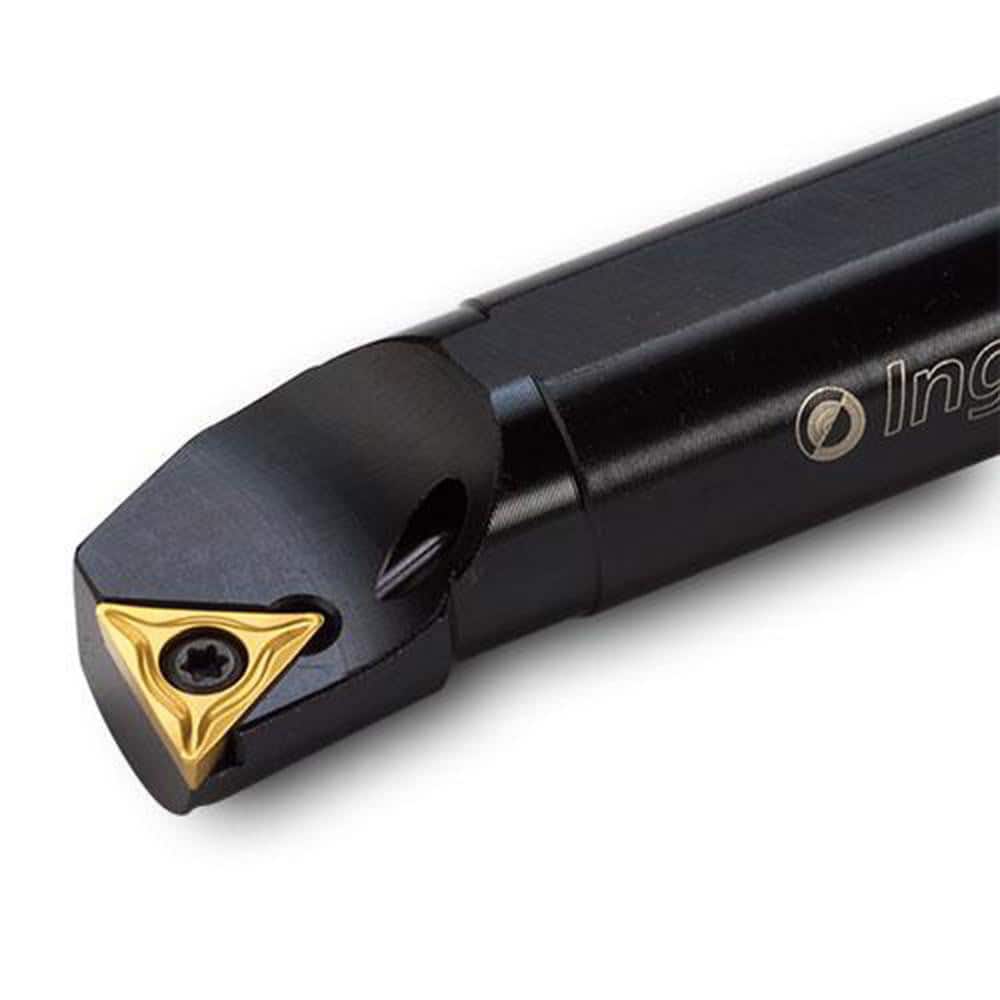

Indexable Boring Bar: A06M-STFCR-2, 91.00° N/A Steel 6.0000″ OAL, Screw,
Item #: 13390869
Brand: Ingersoll Cutting Tools
Model #: 6119606
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
| Minimum Bore Diameter (Inch) | 1/2 |
| Maximum Bore Depth (Decimal Inch) | 1.5000 |
| Maximum Bore Depth (Inch) | 1-1/2 |
| Toolholder Style | STFCR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 6.00 |
| Overall Length (Inch) | 6 |
| Compatible Insert Size Code | TC..21.51CB |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | Yes |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | 7.00 |
| Lead Angle | 91.00 |
| Series | A-STFCR/L |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Cutting Tool Application | Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2500 |
| Coolant Through | Yes |
