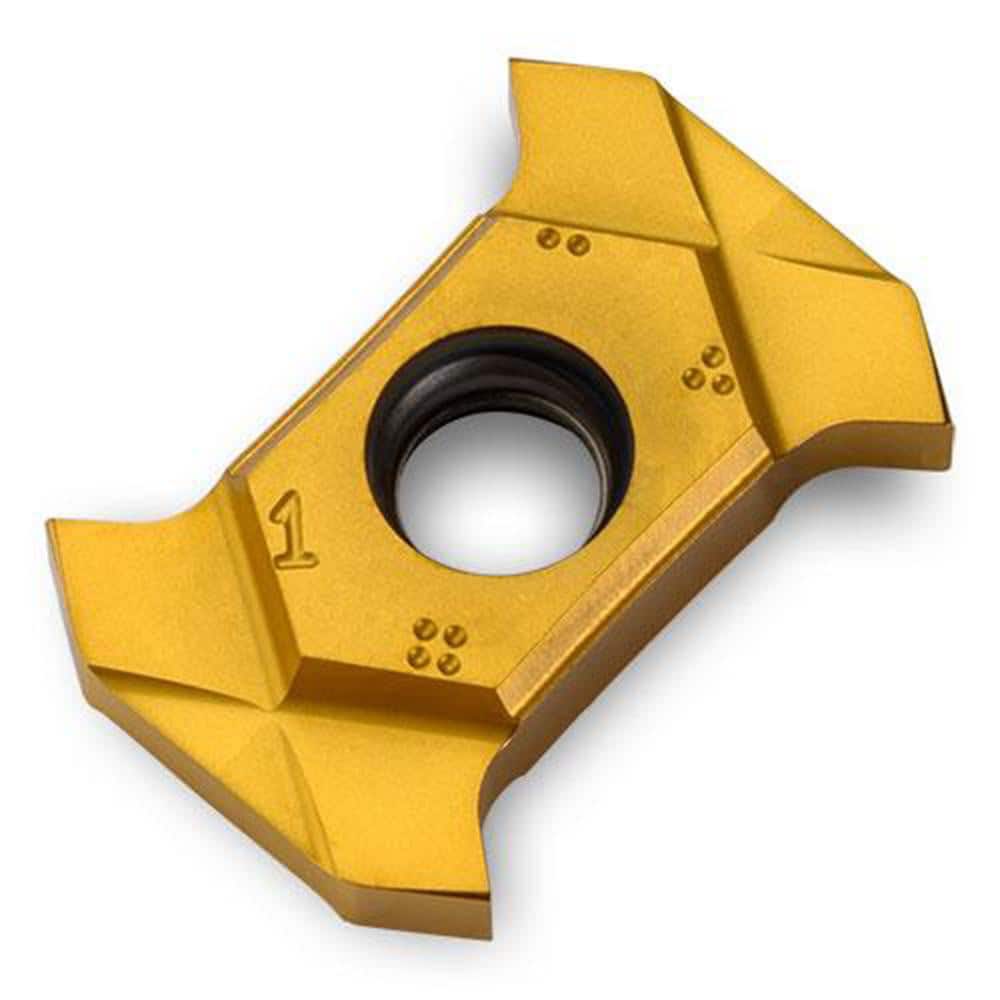

Grooving Insert: TQISS TT9080, Solid Carbide TiAlN & TiN Finish, Neutral, 0.118″ Cutting Width, Series TQIS 14
Item #: 13391354
Brand: Ingersoll Cutting Tools
Model #: 6138265
Product Specifications
| Insert Style | TQIS |
| Insert Size Code | 14 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9080 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | TQIS 14 |
| Coating Process | PVD |
| Primary Workpiece Material | Hard Material; Steel |
| Chip Breaker | S |
| Coating/Finish | TiN; TiAlN |
