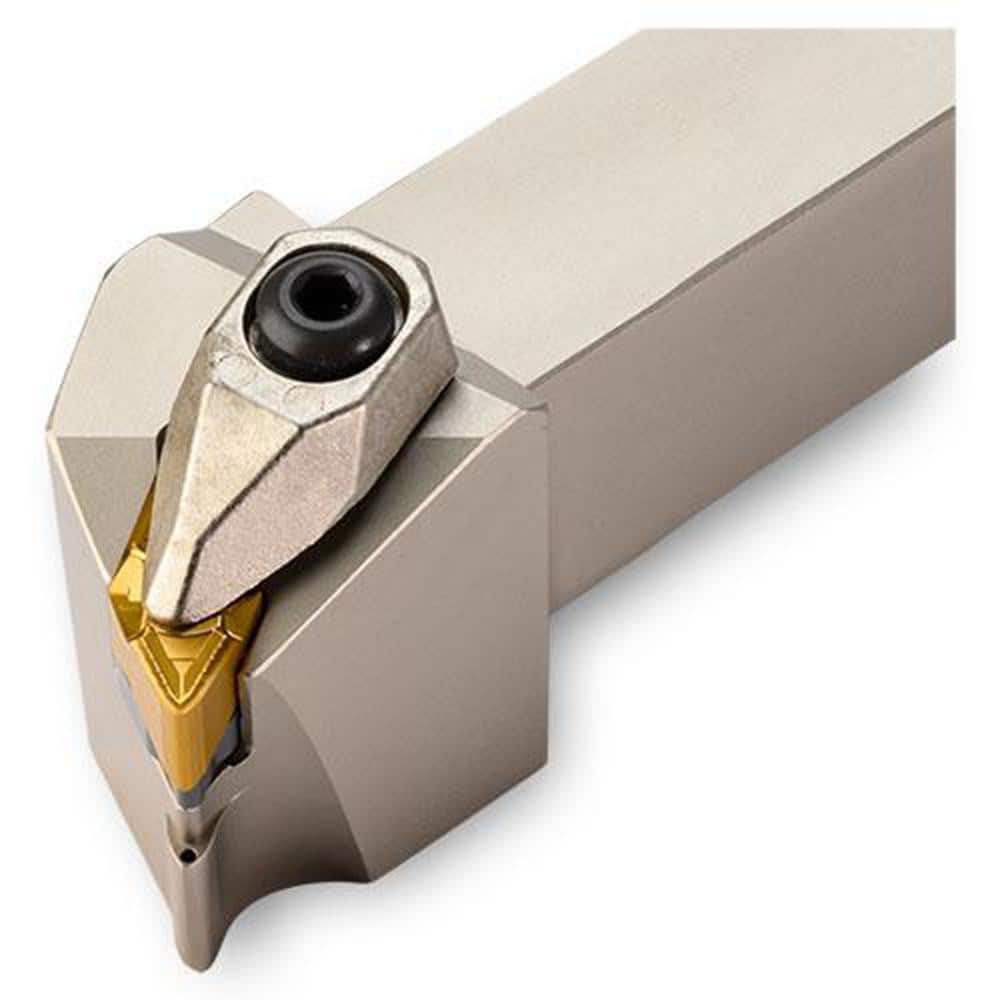

Indexable Turning Toolholders; Cutting Direction: Right Hand; Compatible Insert Size Code: ZN..3.36.3.; Toolholder Style: TZQNR; Rake: Negative; Multi-use Tool: No; Lead Angle: 110.0; Insert Holding Method: Clamp; Shank Width (Decimal Inch): 1.0000; Shank
Item #: 13392006
Brand: Ingersoll Cutting Tools
Model #: 6211447
Product Specifications
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | ZN..3.36.3. |
| Toolholder Style | TZQNR |
| Rake | Negative |
| Multi-use Tool | No |
| Lead Angle | 110.0 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Series | TZQNR; L-TB |
| Overall Length (mm) | 6.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.5700 |
| Toolholder Material | Steel |
