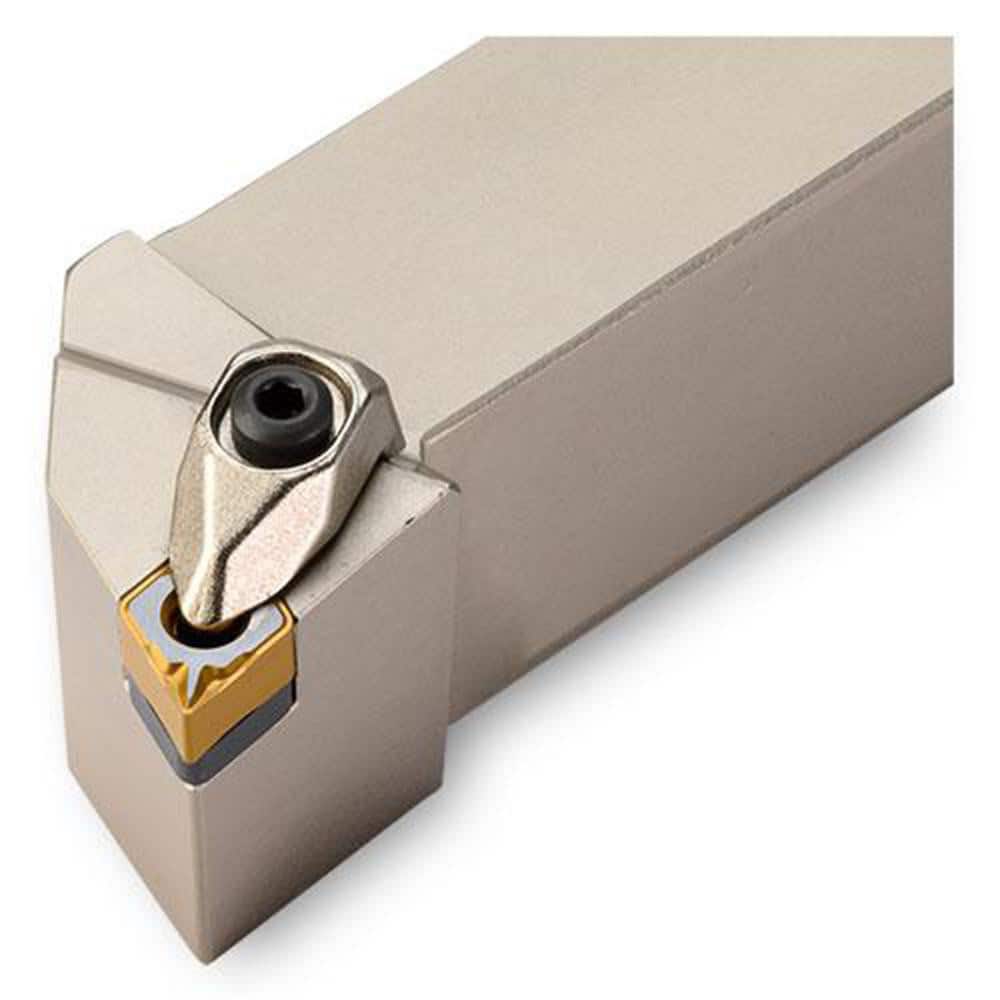

Indexable Turning Toolholders; Cutting Direction: Left Hand; Compatible Insert Size Code: XN..3.52.5.; Toolholder Style: TXJNL; Rake: Negative; Multi-use Tool: No; Lead Angle: 93.0; Insert Holding Method: Clamp; Shank Width (Decimal Inch): 0.7500; Shank W
Item #: 13392493
Brand: Ingersoll Cutting Tools
Model #: 6213205
Product Specifications
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | XN..3.52.5. |
| Toolholder Style | TXJNL |
| Rake | Negative |
| Multi-use Tool | No |
| Lead Angle | 93.0 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Width (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Series | TXJNR; L (Rhino Turn X) |
| Overall Length (mm) | 4.50 |
| Overall Length (Decimal Inch) | 4.5000 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.2600 |
| Toolholder Material | Steel |
