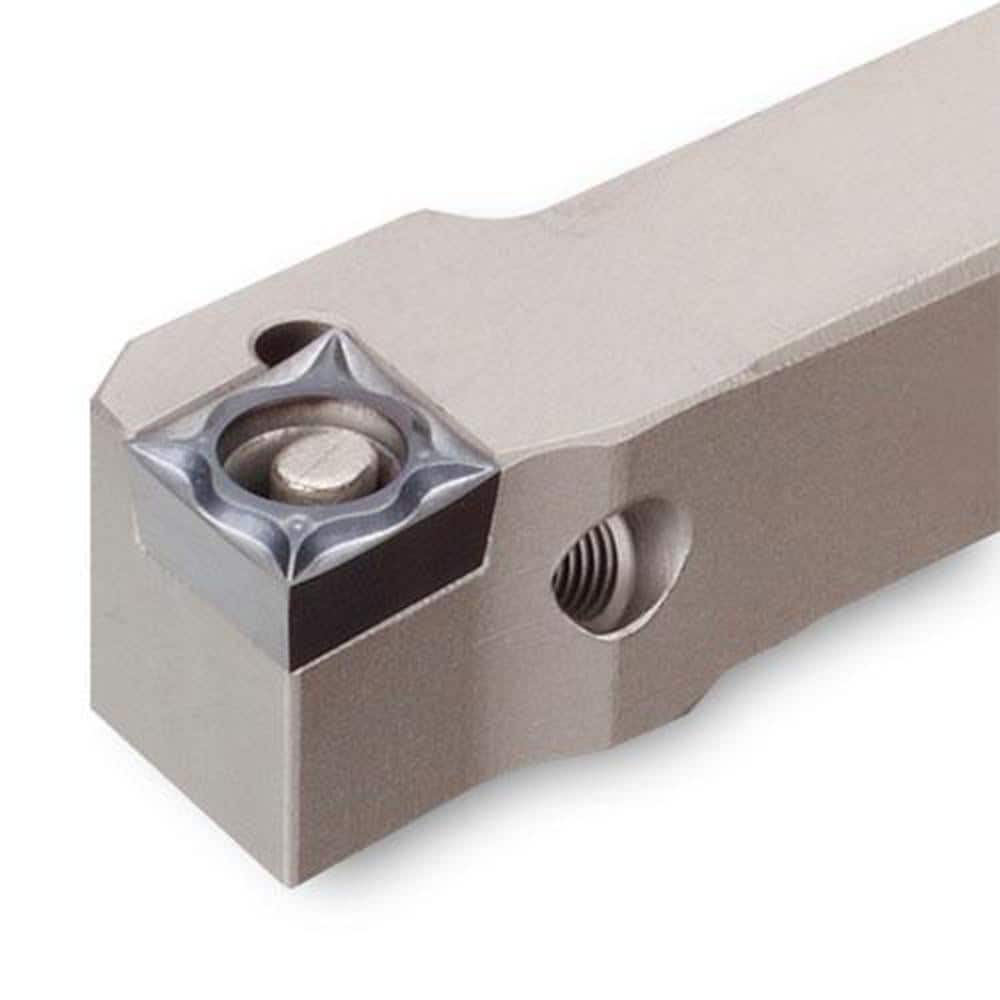

Indexable Turning Toolholders; Cutting Direction: Left Hand; Compatible Insert Size Code: CC..32.5.; Toolholder Style: BCLCL; Rake: Positive; Rake Angle: 7.000; Multi-use Tool: No; Lead Angle: 95.0; Insert Holding Method: Lever; Shank Width (mm): 12.00; S
Item #: 13392816
Brand: Ingersoll Cutting Tools
Model #: 3605415
Product Specifications
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | CC..32.5. |
| Toolholder Style | BCLCL |
| Rake | Positive |
| Rake Angle | 7.000 |
| Multi-use Tool | No |
| Lead Angle | 95.0 |
| Insert Holding Method | Lever |
| Shank Width (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Series | L-SH (Metric); BCLCR |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 125.0000 |
| Overall Length (Inch) | 125 |
| Cutting Tool Application | Turning |
| Head Length (mm) | 17.00 |
| Toolholder Material | Steel |
