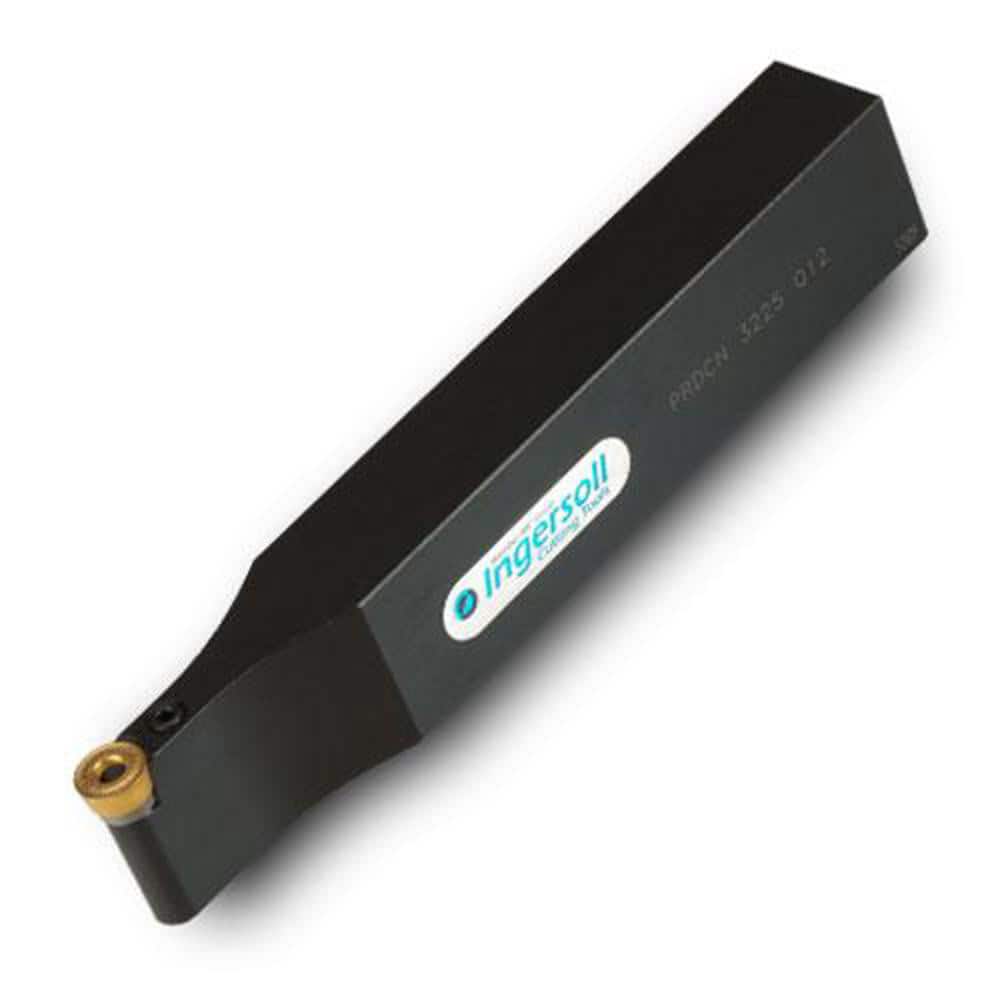

Indexable Turning Toolholders; Cutting Direction: Neutral; Compatible Insert Size Code: RC..1204; Toolholder Style: PRDCN; Rake: Positive; Rake Angle: 7.000; Multi-use Tool: No; Insert Holding Method: Lever; Shank Width (Decimal Inch): 0.7500; Shank Width
Item #: 13394663
Brand: Ingersoll Cutting Tools
Model #: 6100690
Product Specifications
| Cutting Direction | Neutral |
| Compatible Insert Size Code | RC..1204 |
| Toolholder Style | PRDCN |
| Rake | Positive |
| Rake Angle | 7.000 |
| Multi-use Tool | No |
| Insert Holding Method | Lever |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Width (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Series | PRDCN |
| Overall Length (mm) | 5.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.9700 |
| Toolholder Material | Steel |
