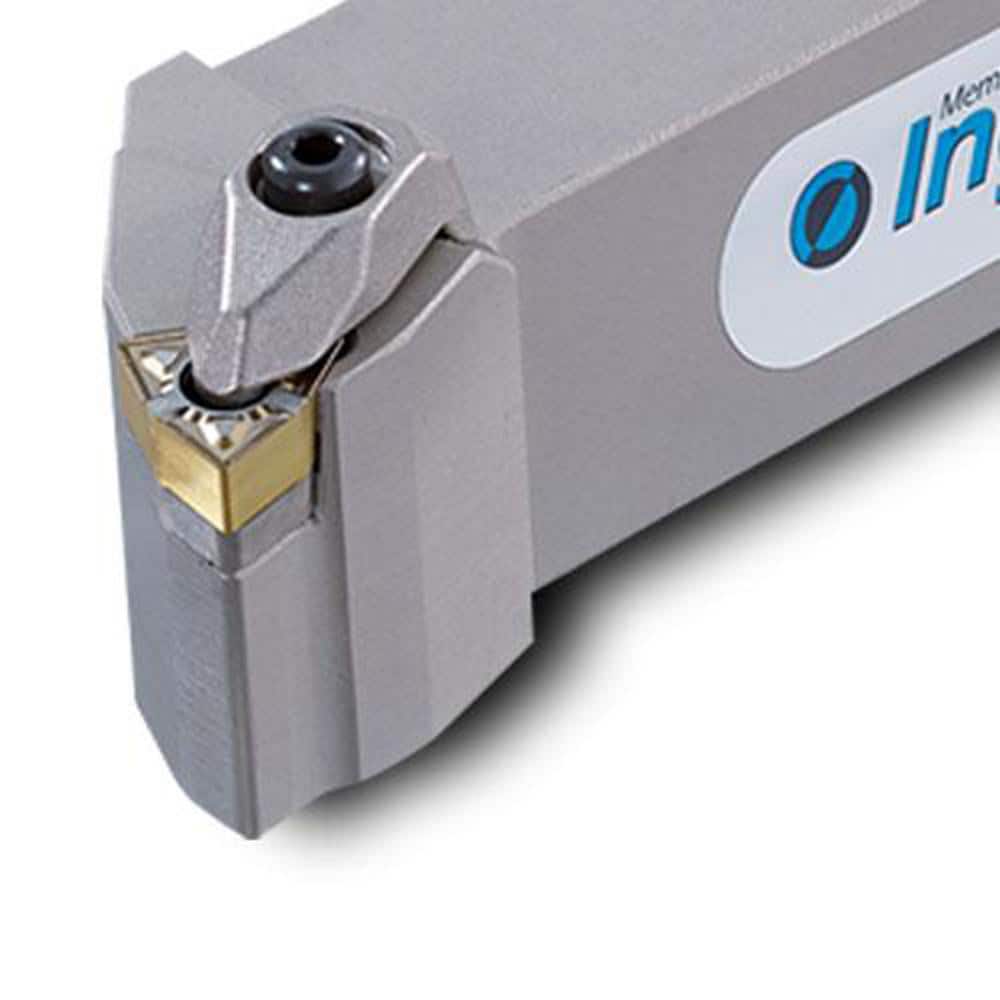

Indexable Turning Toolholders; Cutting Direction: Left Hand; Compatible Insert Size Code: WN..33.; Toolholder Style: TWLNL; Rake: Negative; Multi-use Tool: No; Lead Angle: 95.0; Insert Holding Method: Clamp; Shank Width (Decimal Inch): 1.0000; Shank Width
Item #: 13395199
Brand: Ingersoll Cutting Tools
Model #: 6160228
Product Specifications
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | WN..33. |
| Toolholder Style | TWLNL |
| Rake | Negative |
| Multi-use Tool | No |
| Lead Angle | 95.0 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Series | TWLNR; L (Gold Rhino) |
| Overall Length (mm) | 6.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.0200 |
| Toolholder Material | Steel |
