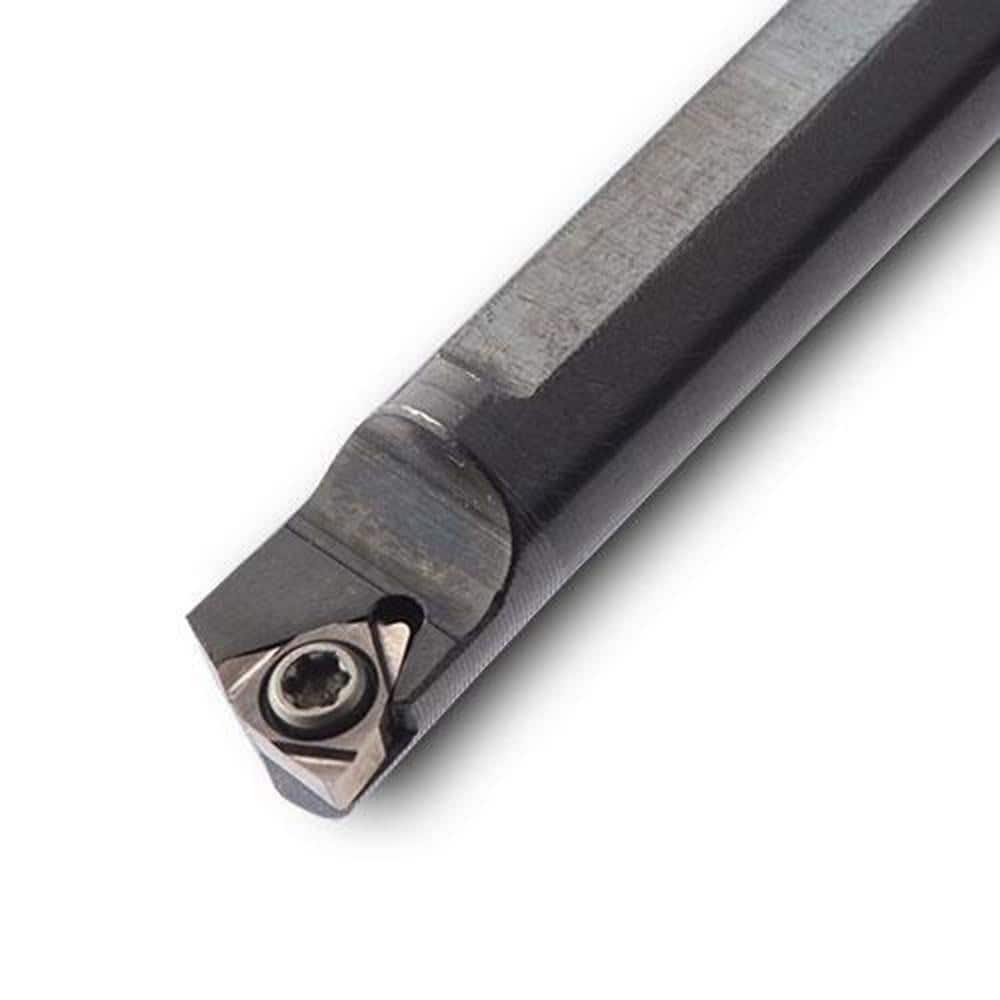

Indexable Boring Bar: C06J-SWUBL06-D07, 6.00 mm Shank Dia, 93.00° N/A Solid Carbide 4.3000″ OAL, Screw,
Item #: 13395785
Brand: Ingersoll Cutting Tools
Model #: 3606241
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.2760 |
| Maximum Bore Depth (Decimal Inch) | 1.6535 |
| Toolholder Style | SWUBL |
| Tool Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 6.0000 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Inch) | 6 |
| Overall Length (Decimal Inch) | 4.3000 |
| Overall Length (mm) | 4.30 |
| Compatible Insert Size Code | WB..1.210.5R-FF |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Trigon |
| Insert Included | Yes |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Rake Angle | 5.00 |
| Lead Angle | 93.00 |
| Series | C-SWUBR/L (Metric, Carbide) |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Compatible Insert Thickness (Decimal Inch) | 0.0630 |
| Cutting Tool Application | Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.1330 |
| Coolant Through | No |
