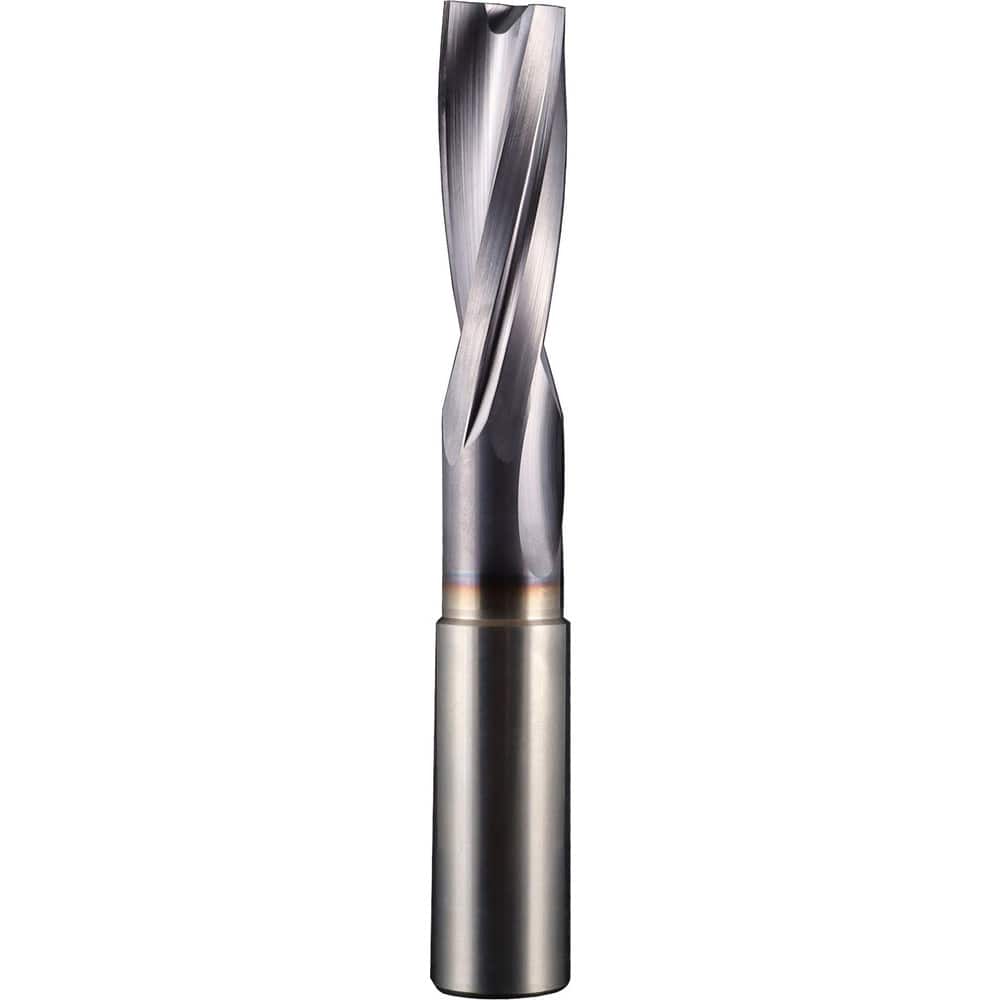

Screw Machine Length Drill Bit: 180 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 136U
Item #: 13419635
Brand: SGS
Model #: 58541
Product Specifications
| Drill Bit Size (Inch) | 5/8 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 180 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Shank Diameter (mm) | 16.00 |
| Series | 136U |
| Number of Margins | 4 |
| Drill Length Type | Screw Machine |
| Point Type | Flat Bottom |
| Maximum Drilling Depth (mm) | 55.56 |
| Shank Length (Decimal Inch) | 2.1402 |
| Shank Length (mm) | 54.36 |
| Flute By Diameter Ratio | 2xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.00028 to +0.00098 |
| Flute Length (mm) | 55.56 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
