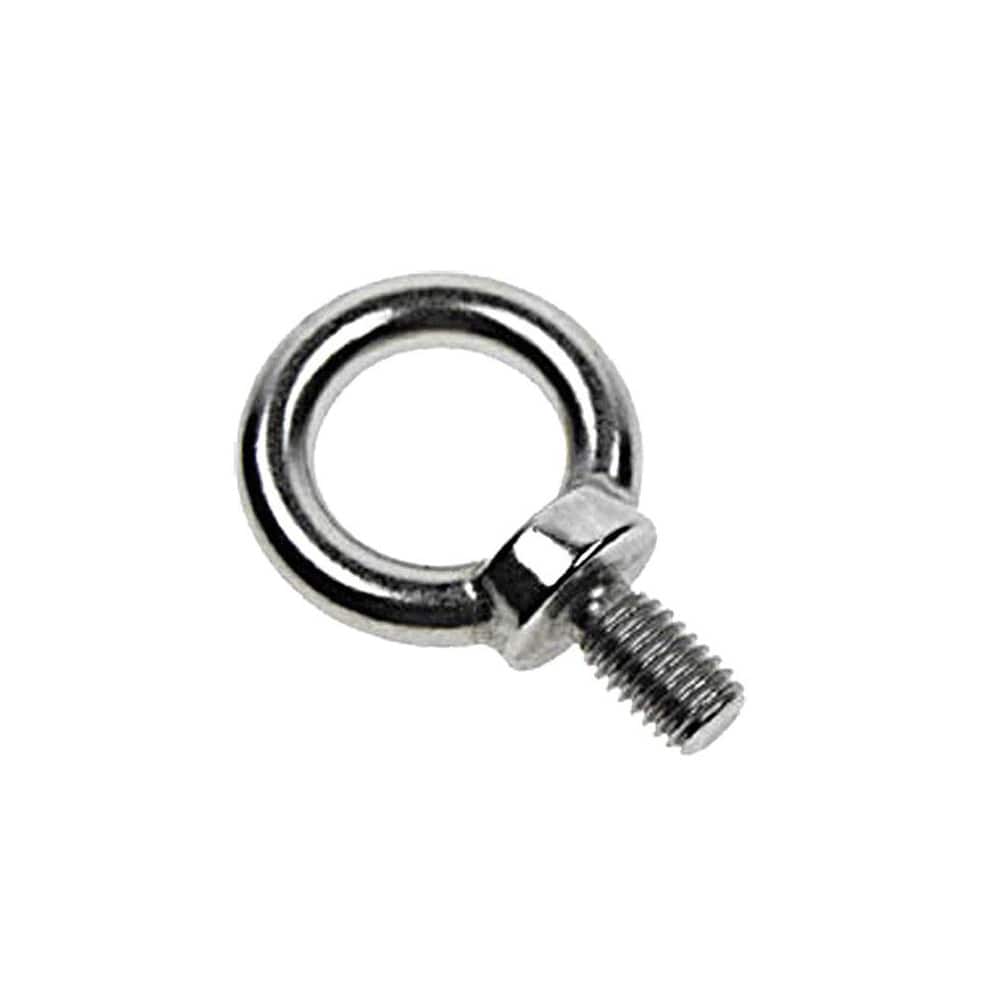

Fixed Lifting Eye Bolt: Without Shoulder, 9,500 lb Capacity, 1 ™ Thread, Grade 316 Stainless Steel Fully Threaded, 1-3/8″ Shank, 1-3/8″ Thread Length
Item #: 13462379
Brand: US Cargo Control
Model #: MSSEB1X1-38
Product Specifications
| Eye Bolt Type | Fixed |
| Shoulder Type | Without Shoulder |
| Lifting Capacity (Lb.) | 9500.00 |
| Eye Inside Diameter (Decimal Inch) | 2.0000 |
| Eye Inside Diameter (Inch) | 2 |
| Eye Outside Diameter (Decimal Inch) | 3.5000 |
| Eye Outside Diameter (Inch) | 3-1/2 |
| Thread Size | 1 in |
| Thread Length (Inch) | 1-3/8 |
| Full or Partial Threading | Fully Threaded |
| Thread Length (Decimal Inch) | 1.3750 |
| Overall Length (mm) | 4.88 |
| Overall Length (Decimal Inch) | 4.8800 |
| Shank Length (Inch) | 1-3/8 |
| Shank Diameter (Inch) | 1 |
| Material | 316 Stainless Steel |
