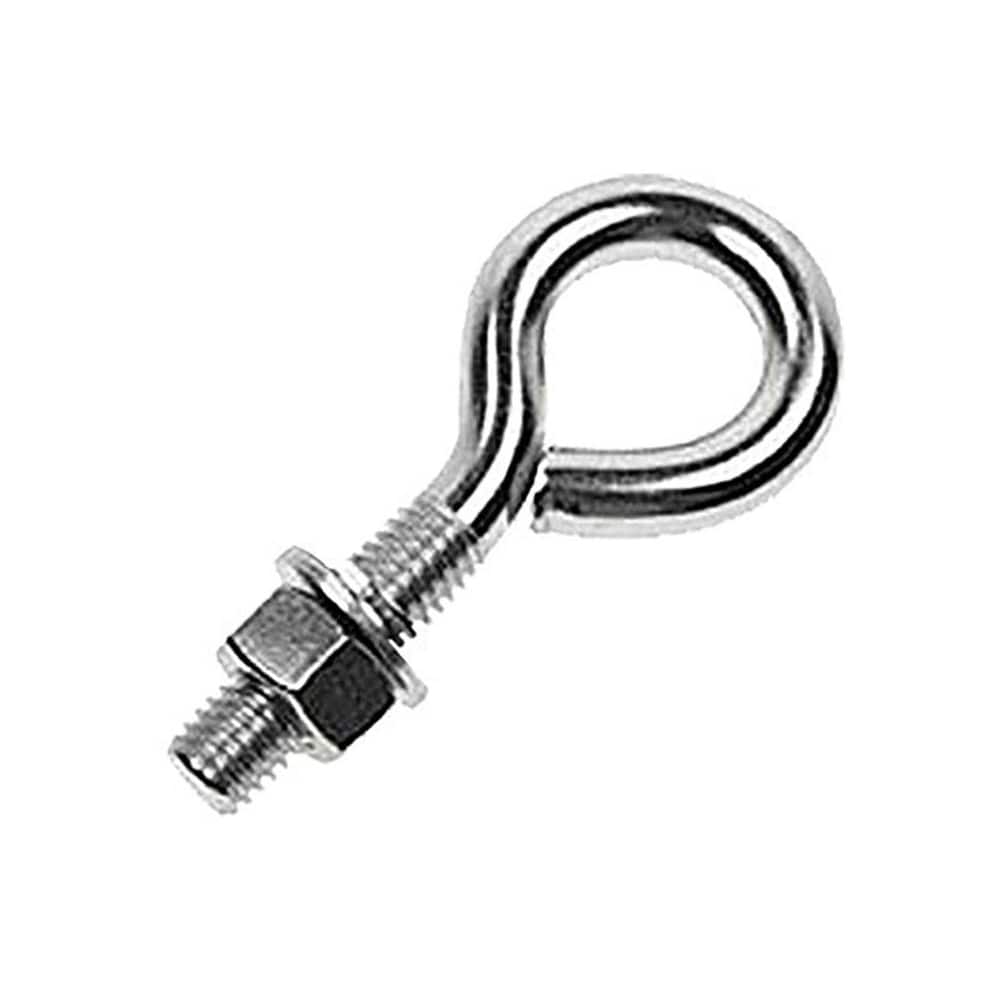

Fixed Lifting Eye Bolt: With Shoulder, 3,200 lb Capacity, 5/8 ™ Thread, Grade 316 Stainless Steel Partially Threaded, 1-3/4″ Shank
Item #: 13462445
Brand: US Cargo Control
Model #: SSSEB58X1-34
Product Specifications
| Eye Bolt Type | Fixed |
| Shoulder Type | With Shoulder |
| Lifting Capacity (Lb.) | 3200.00 |
| Eye Inside Diameter (Decimal Inch) | 1.3750 |
| Eye Inside Diameter (Inch) | 1-3/8 |
| Eye Outside Diameter (Decimal Inch) | 2.3400 |
| Thread Size | 5/8 in |
| Full or Partial Threading | Partially Threaded |
| Thread Length (Mm) ( - 3 Decimals) | 1.77 |
| Thread Length (Decimal Inch) | 1.7700 |
| Overall Length (mm) | 4.62 |
| Overall Length (Decimal Inch) | 4.6200 |
| Shank Length (Inch) | 1-3/4 |
| Shank Diameter (Inch) | 5/8 |
| Material | 316 Stainless Steel |
