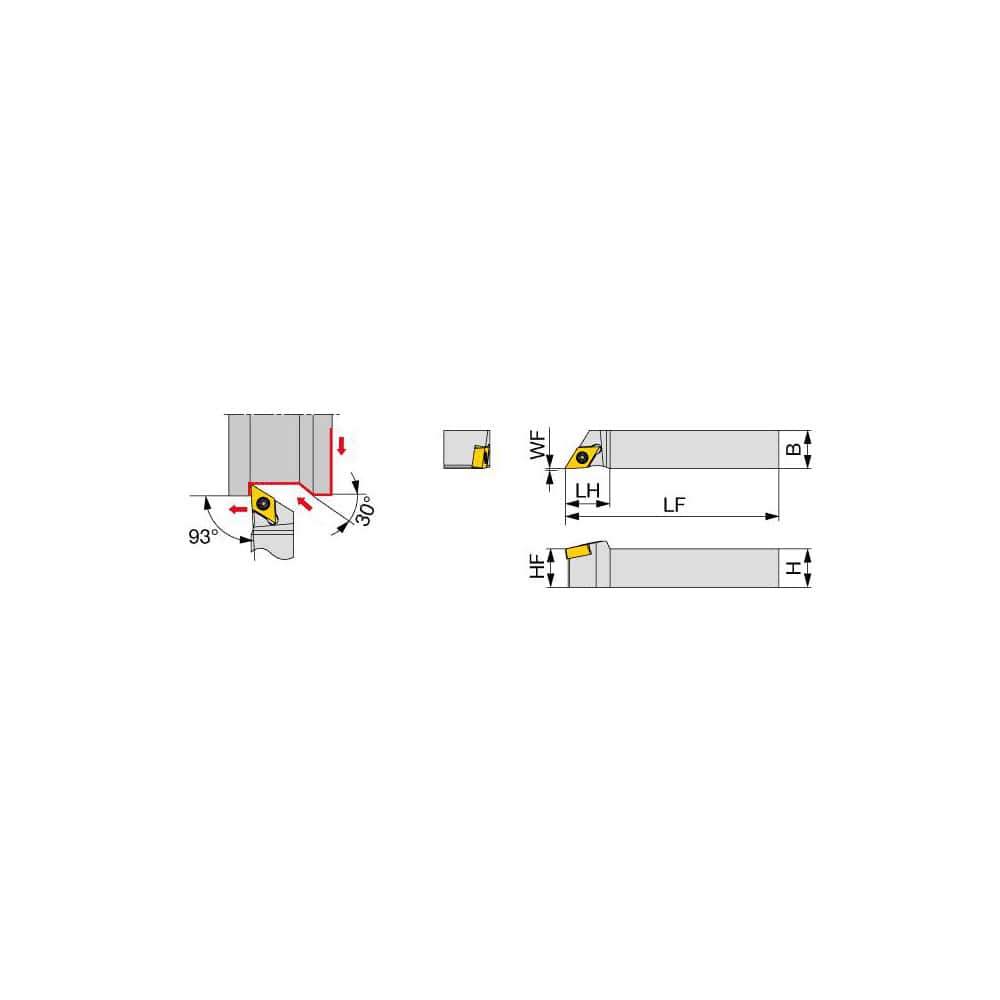

Indexable Turning Toolholders; Cutting Direction: Left Hand; Compatible Insert Size Code: DXGU070302R-TS; Toolholder Style: JSDJ2X; Rake: Negative; Rake Angle: -5; Multi-use Tool: Yes; Lead Angle: 93.0; Insert Holding Method: Screw; Shank Width (mm): 20.0
Item #: 13468194
Brand: Tungaloy
Model #: 6734052
Product Specifications
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | DXGU070302R-TS |
| Toolholder Style | JSDJ2X |
| Rake | Negative |
| Rake Angle | -5 |
| Multi-use Tool | Yes |
| Lead Angle | 93.0 |
| Insert Holding Method | Screw |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Series | JSDJ2X |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 100.0000 |
| Overall Length (Inch) | 100 |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 17.00 |
| Insert Width (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
| Insert Thickness (Decimal Inch) | 0.1250 |
