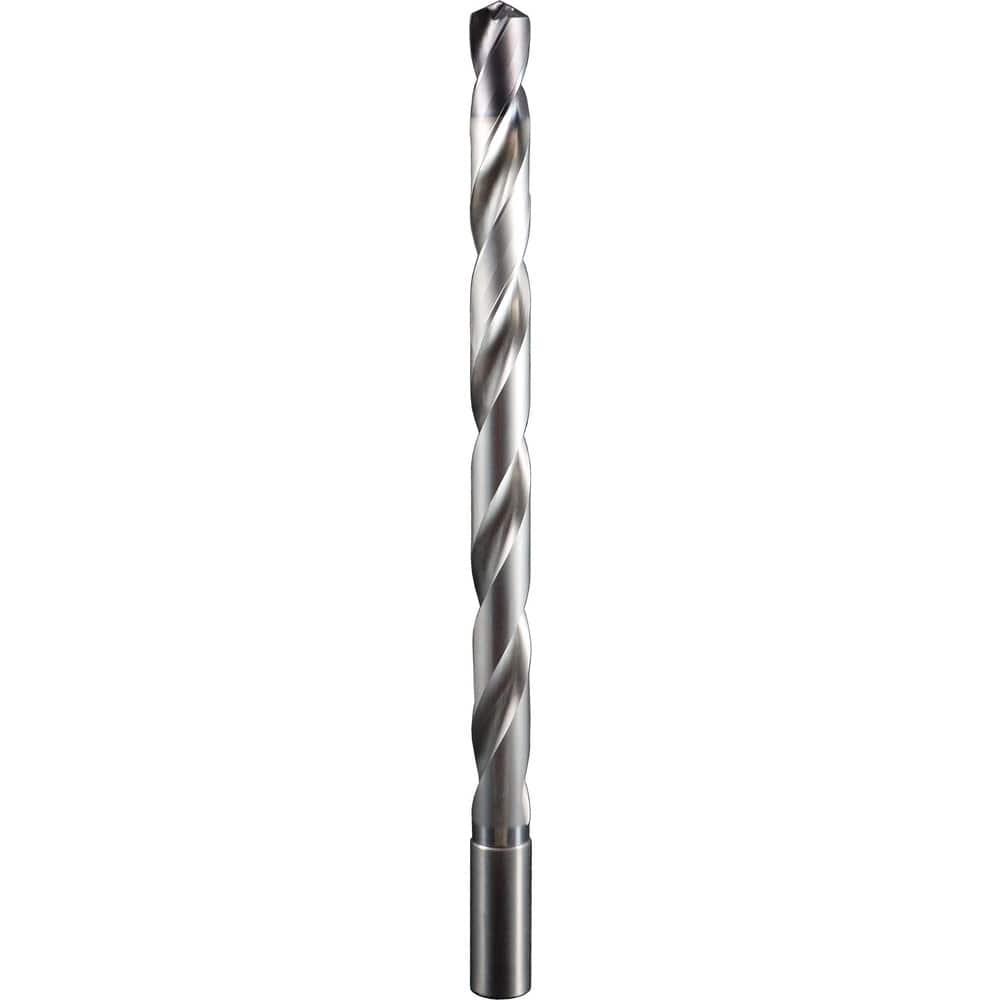

Extra Length Drill Bit: 0.2874″ Dia, 137 °, Solid Carbide TX Finish, 146.05″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series 142P
Item #: 13473004
Brand: SGS
Model #: 66752
Product Specifications
| Drill Bit Size (mm) | 7.30 |
| Flute Length (mm) | 107.95 |
| Tool Material | Solid Carbide |
| Coating/Finish | TX |
| Drill Point Angle | 137 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 142P |
| Point Type | Flat-Bottom |
| Cutting Direction | Right Hand |
| Tool Application | Drilling |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.2874 |
| Overall Length (Decimal Inch) | 146.0500 |
| Shank Diameter (Decimal Inch) | 8.0000 |
| Shank Length (mm) | 38.00 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 107.95 |
