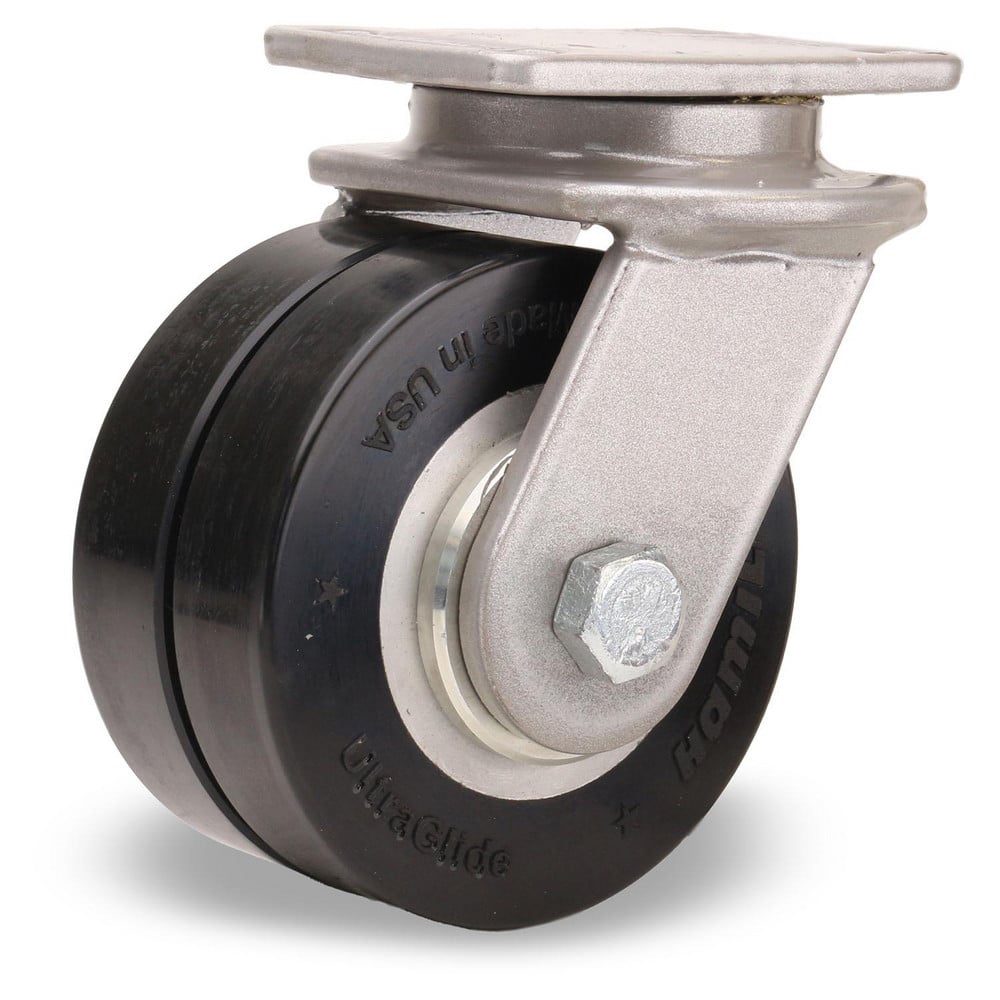

Swivel Top Plate Caster: Polyurethane on Aluminum, 4″ Wheel Dia, 2″ Wheel Width, 1,000 lb Capacity, 5-1/8″ OAH 3.625″ Plate Length, 2.5″ Plate Width, Non-Marking
Item #: 13524541
Brand: Hamilton
Model #: S-EN-4SWF70D
Product Specifications
| Wheel Type | Twin Wheel |
| Wheel Diameter (Inch) | 4 |
| Mount Type | Plate |
| Load Capacity | 1000 |
| Bearing Type | Sealed Precision Ball |
| Wheel Width | 2 in |
| Wheel Hardness | Hard |
| Wheel Width (Inch) | 2 |
| Style | Swivel |
| For Surface Type | Tile; Concrete; Steel |
| Frame Material | Forged Steel; Steel |
| Wheel Diameter | 4 in |
| Wheel Hardness Rating | 70D |
| Wheel Material | Polyurethane on Aluminum |
| Tread Shape | Flat |
| Swivel Construction | Kingpinless Swivel |
| Wheel Bearing Type | Ball |
| Wheel Bearing Material | Steel |
| Construction | Drop Forged |
| Wheel Color | Black |
| Bearing Seal Type | Sealed |
| Attaching Bolt Size (Fractional Inch) | 5/16 |
| Plate Length (Inch) | 3.6250 |
| Inside Bolt Hole Spacing | 1-3/4 x 2-7/8 |
| Outside Bolt Hole Spacing | 1-3/4 x 3 |
| Overall Height (Inch) | 5-1/8 |
| Overall Height (Decimal Inch) | 5.1250 |
| Marking | No |
| Standards | ICWM |
| Number Of Wheels | 2 |
| Plate Width/Diameter (Decimal Inch) | 2.5000 |
| Finish Coating | Platinum Powder |
