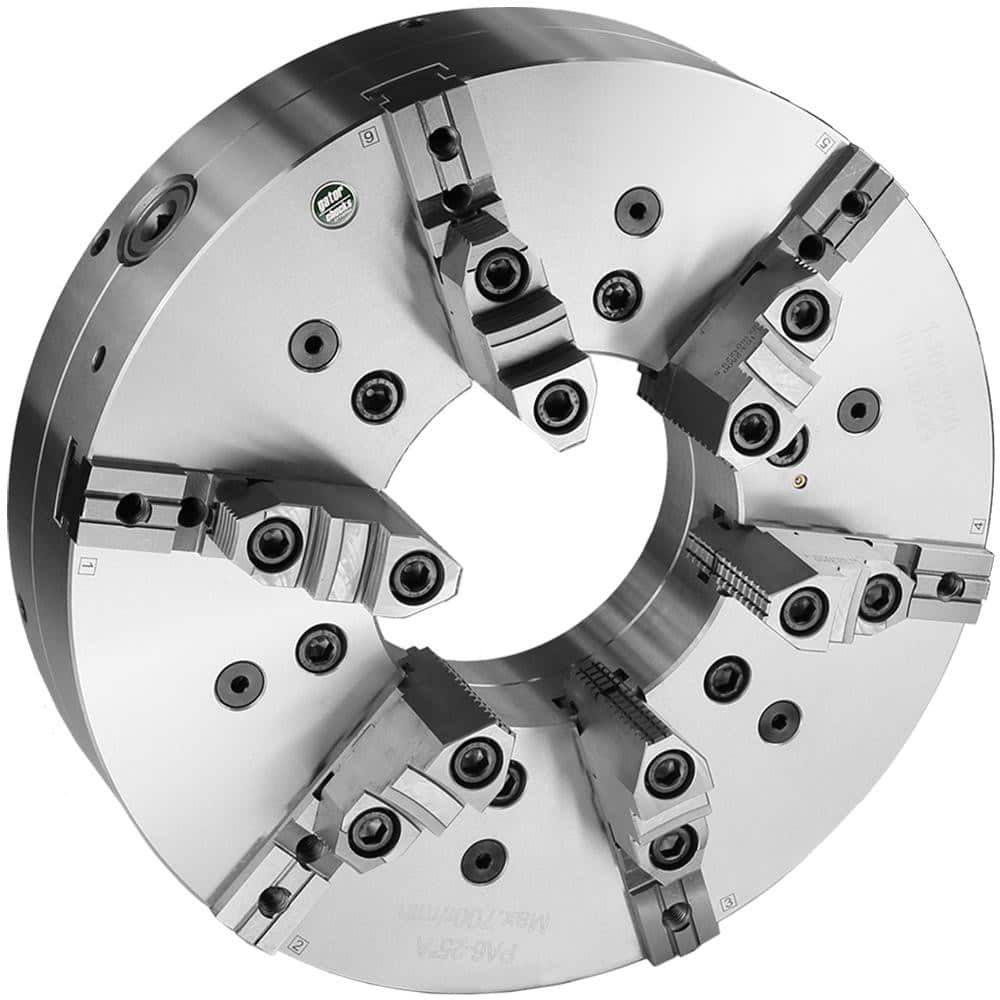

Self-Centering Manual Lathe Chuck: 6-Jaw, 16″ Dia Two-Piece Jaws, Front Mount, Adjustable, 1,300 Max RPM
Item #: 13534631
Brand: Gator Lathe Chucks
Model #: 1-103-1600
Product Specifications
| Chuck Type | Self-Centering |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | Yes |
| Through-Hole Diameter (Decimal Inch) | 5.3540 |
| Chuck Diameter (Decimal Inch) | 16.0000 |
| Chuck Diameter (Inch) | 16 |
| Minimum Jaw Capacity (Inch) | 0.5900 |
| Minimum Jaw Capacity (mm) | 0.59 |
| Maximum Jaw Capacity (mm) | 15.75 |
| Maximum Jaw Capacity (Inch) | 15.7500 |
| Jaw Height (Decimal Inch) | 2.6380 |
| Maximum Rpm | 1300 |
| Mount Type | Front |
| TIR Repeatability (Decimal Inch) | 0.0004 |
| Number Of Jaws | 6 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Eye Bolts; Fine Adjustment Screws; Chuck Wrench; Hex Keys |
