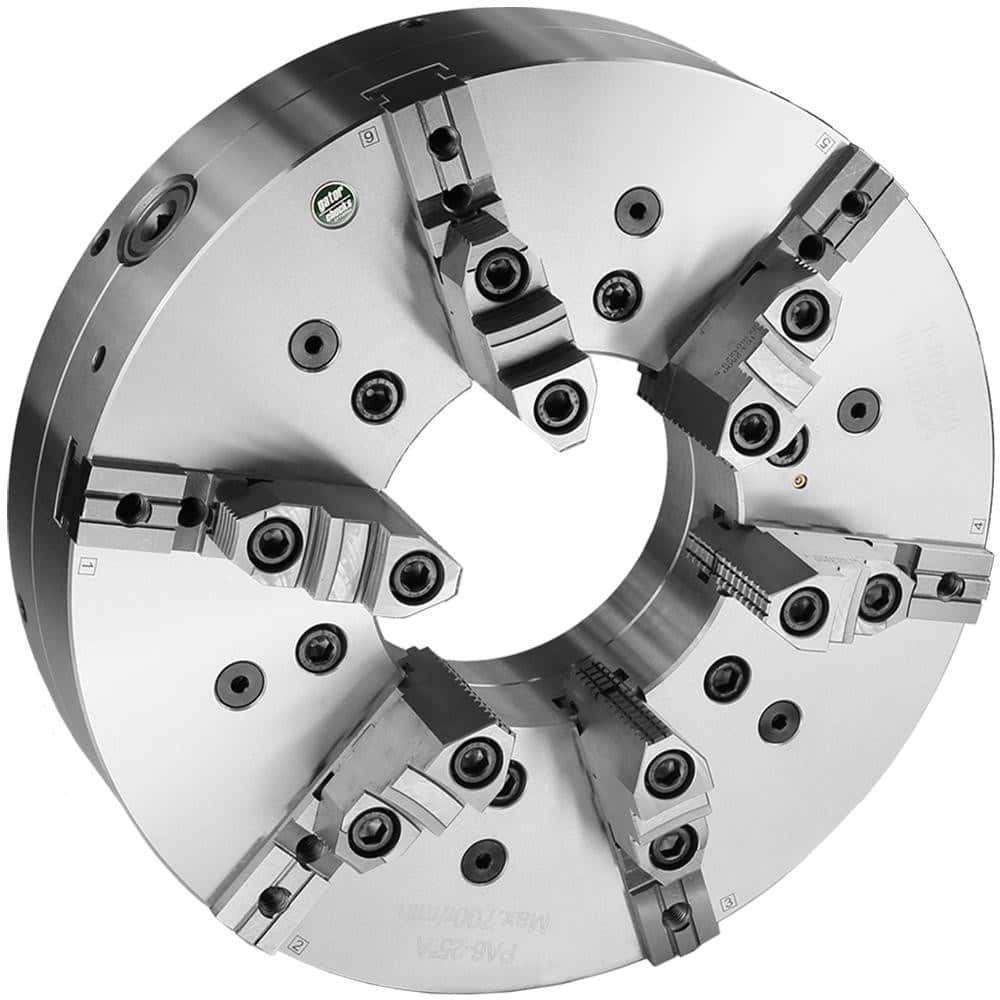

Self-Centering Manual Lathe Chuck: 6-Jaw, 20″ Dia Two-Piece Jaws, Front Mount, Adjustable, 400 Max RPM
Item #: 13535885
Brand: Gator Lathe Chucks
Model #: 1-153-2000
Product Specifications
| Chuck Type | Self-Centering |
| Material | Semi-Steel; Cast Iron |
| Jaw Type | Two-Piece |
| Adjustable | Yes |
| Through-Hole Diameter (Decimal Inch) | 7.4800 |
| Chuck Diameter (Decimal Inch) | 20.0000 |
| Chuck Diameter (Inch) | 20 |
| Minimum Jaw Capacity (Inch) | 1.1800 |
| Minimum Jaw Capacity (mm) | 1.18 |
| Maximum Jaw Capacity (mm) | 18.82 |
| Maximum Jaw Capacity (Inch) | 18.8200 |
| Jaw Height (Decimal Inch) | 3.1100 |
| Maximum Rpm | 400 |
| Mount Type | Front |
| TIR Repeatability (Decimal Inch) | 0.0004 |
| Number Of Jaws | 6 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Eye Bolts; Fine Adjustment Screws; Chuck Wrench; Hex Keys |
