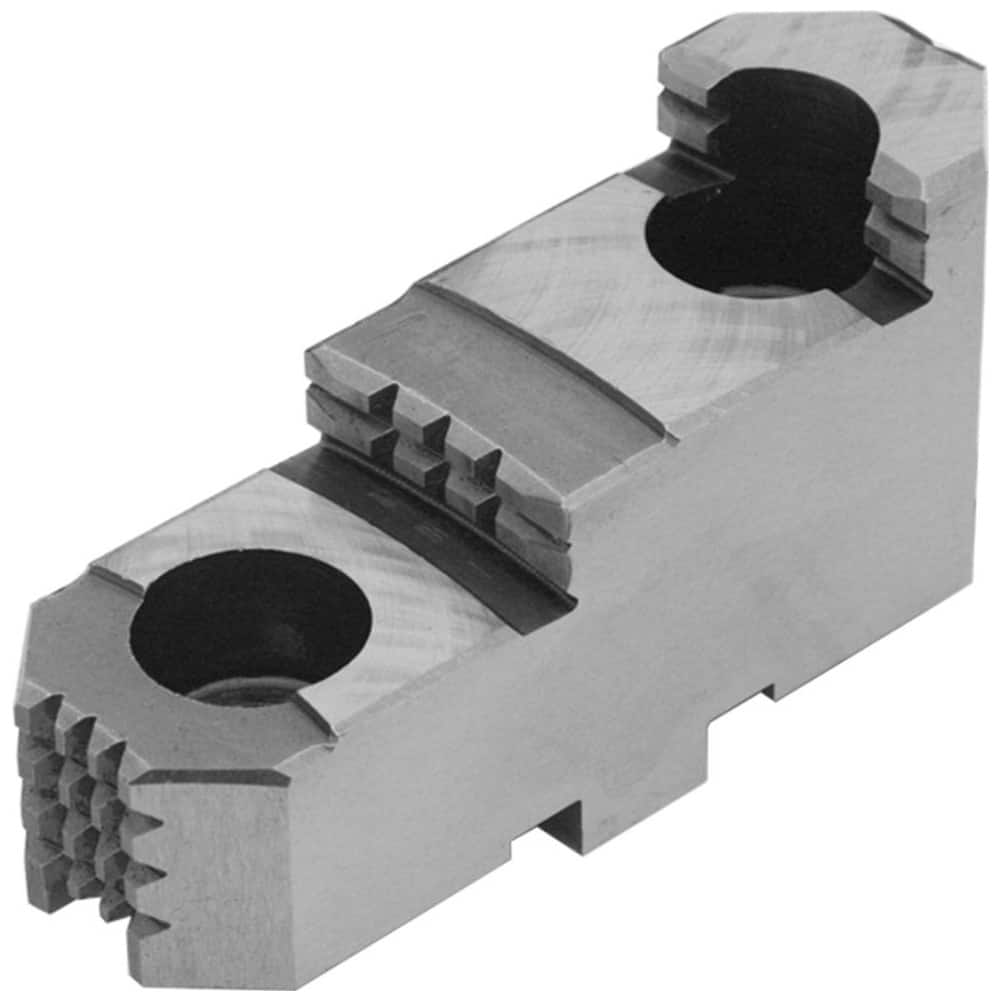

Hard Lathe Chuck Jaw: 32'' Max Chuck Dia, Top 3'' OAW, 3.47'' OAH, 5.35'' OAL, 2 Step, 3'' Between Mount Hole Centers, Hard Steel
Item #: 13535976
Brand: Gator Lathe Chucks
Model #: TJ-PI-800
Product Specifications
| Jaw Type | Top |
| Jaw Interface Type | Tongue & Groove |
| Material | Hard Steel |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 32.0000 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 32.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 3.0000 |
| Groove Width (Decimal Inch) | 0.5000 |
| Overall Height (Decimal Inch) | 3.4700 |
| Overall Length (Decimal Inch) | 5.3500 |
| Overall Width/Diameter (Decimal Inch) | 3.0000 |
| Number Of Jaws | 4 |
| Number Of Steps | 2 |
