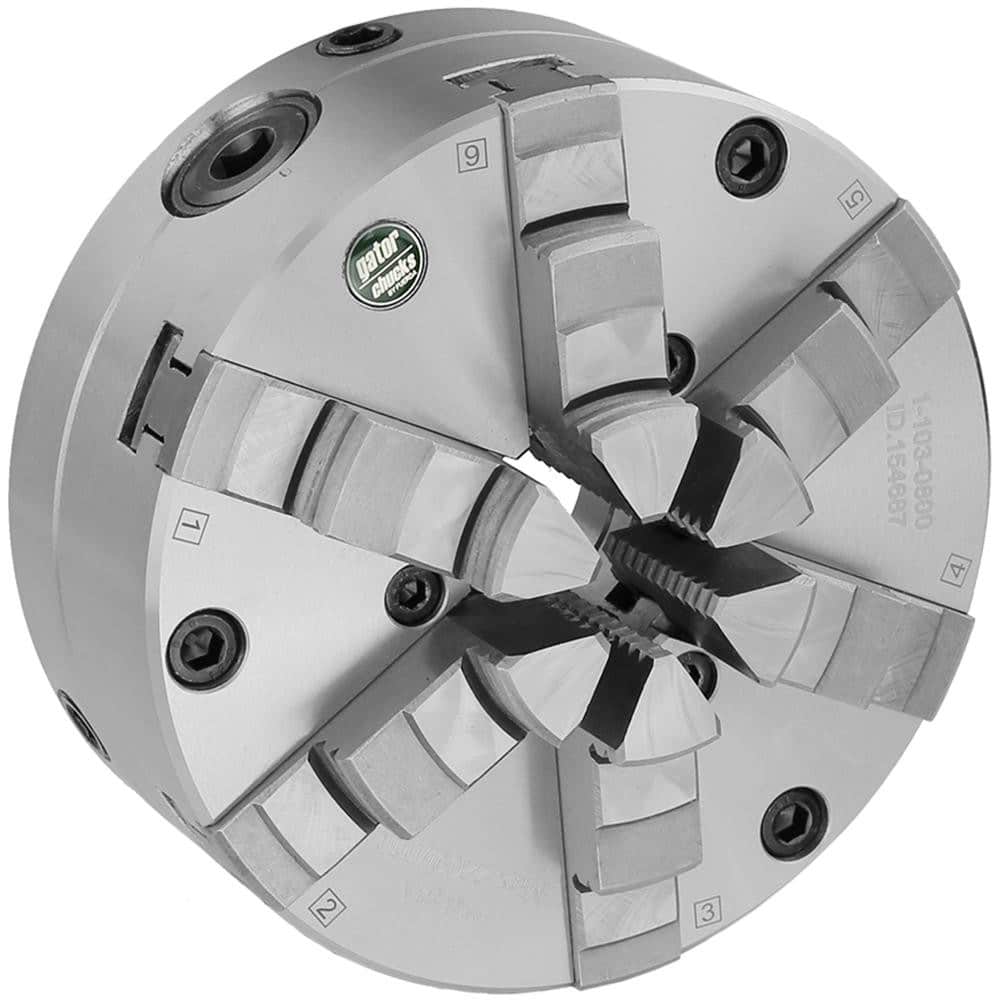

Self-Centering Manual Lathe Chuck: 6-Jaw, 8″ Dia Hard & Solid Jaws, Front Mount, Adjustable, 2,200 Max RPM
Item #: 13539564
Brand: Gator Lathe Chucks
Model #: 1-104-0800
Product Specifications
| Chuck Type | Self-Centering |
| Material | Forged Steel |
| Jaw Type | Hard; Solid |
| Adjustable | Yes |
| Through-Hole Diameter (Decimal Inch) | 2.1650 |
| Chuck Diameter (Decimal Inch) | 8.0000 |
| Chuck Diameter (Inch) | 8 |
| Minimum Jaw Capacity (Inch) | 0.3150 |
| Minimum Jaw Capacity (mm) | 0.31 |
| Maximum Jaw Capacity (mm) | 7.87 |
| Maximum Jaw Capacity (Inch) | 7.8700 |
| Jaw Height (Decimal Inch) | 1.1420 |
| Maximum Rpm | 2200 |
| Mount Type | Front |
| TIR Repeatability (Decimal Inch) | 0.0004 |
| Number Of Jaws | 6 |
| Contents | Adapter Mounting Bolts; (1) Set of Hard Solid ID & OD Jaws; Fine Adjustment Screws; Chuck Wrench; Hex Keys |
