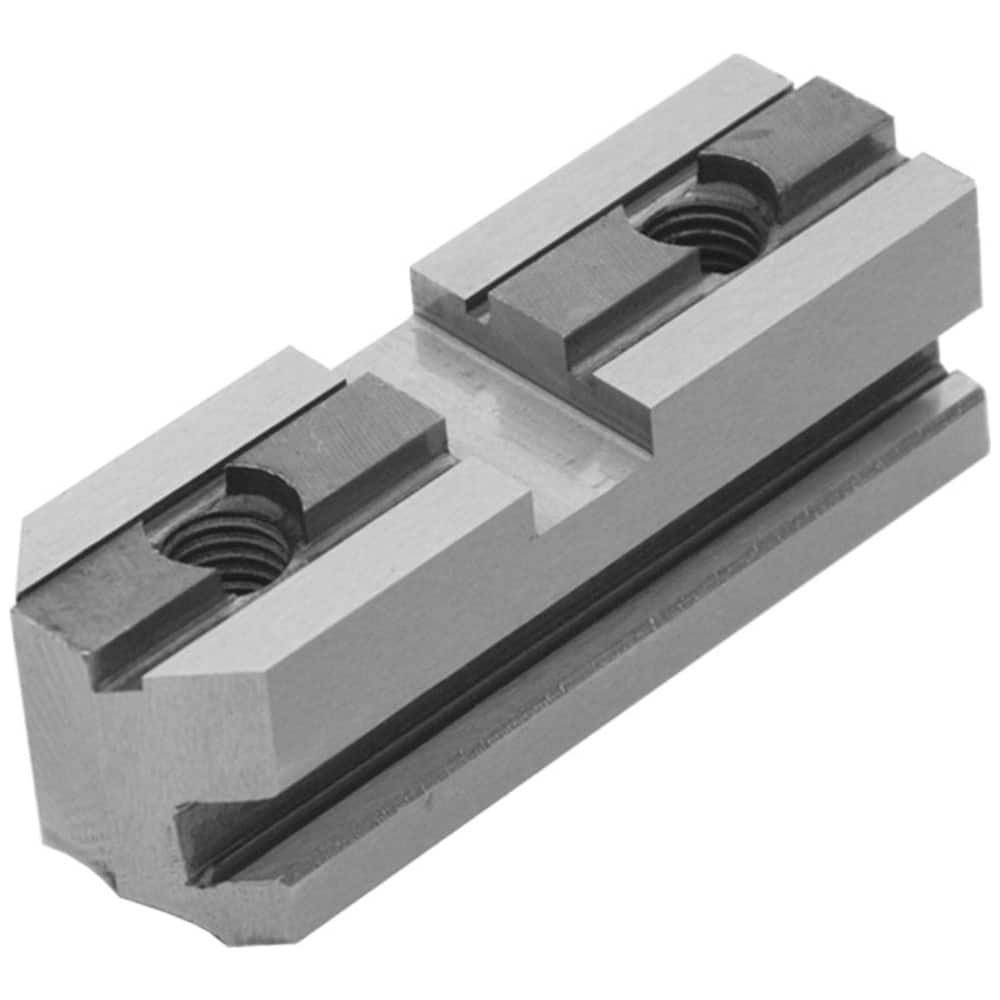

Hard Lathe Chuck Jaw: 40'' Max Chuck Dia, Master 3'' OAW, 0.5'' OAH, 12.8'' OAL, 3'' Between Mount Hole Centers, Hard Steel
Item #: 13541511
Brand: Gator Lathe Chucks
Model #: MJ-PI-1000
Product Specifications
| Jaw Type | Master |
| Jaw Interface Type | Tongue & Groove |
| Material | Hard Steel |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 40.0000 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 40.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 3.0000 |
| Groove Width (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 12.8000 |
| Overall Width/Diameter (Decimal Inch) | 3.0000 |
| Number Of Jaws | 4 |
| Number Of Steps | 0 |
