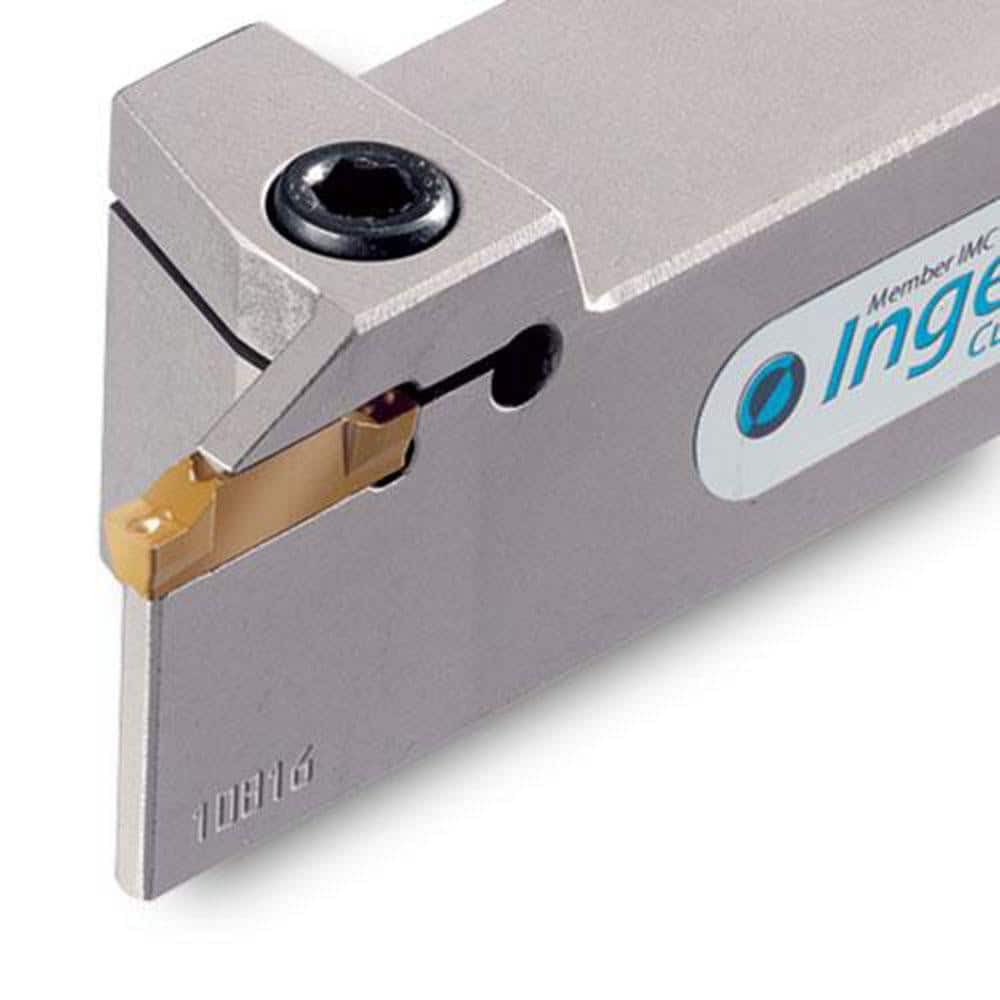

Indexable Grooving Toolholder: TTEL25.4-2T17, 0.0670″ Max Groove Width 0.6700″ Max Depth, Uses TD 2 & TS 2 Inserts, 1.0000″ Shank Height, 1″ Shank Width, No
Item #: 13575584
Brand: Ingersoll Cutting Tools
Model #: 2801249
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 2 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Toolholder Style | TTEL |
| Maximum Groove Width (Decimal Inch) | 0.0670 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 2; TS 2 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | TTER/L |
| Shank Length (Decimal Inch) | 4.5400 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3400 |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Head Length (Decimal Inch) | 1.4600 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
