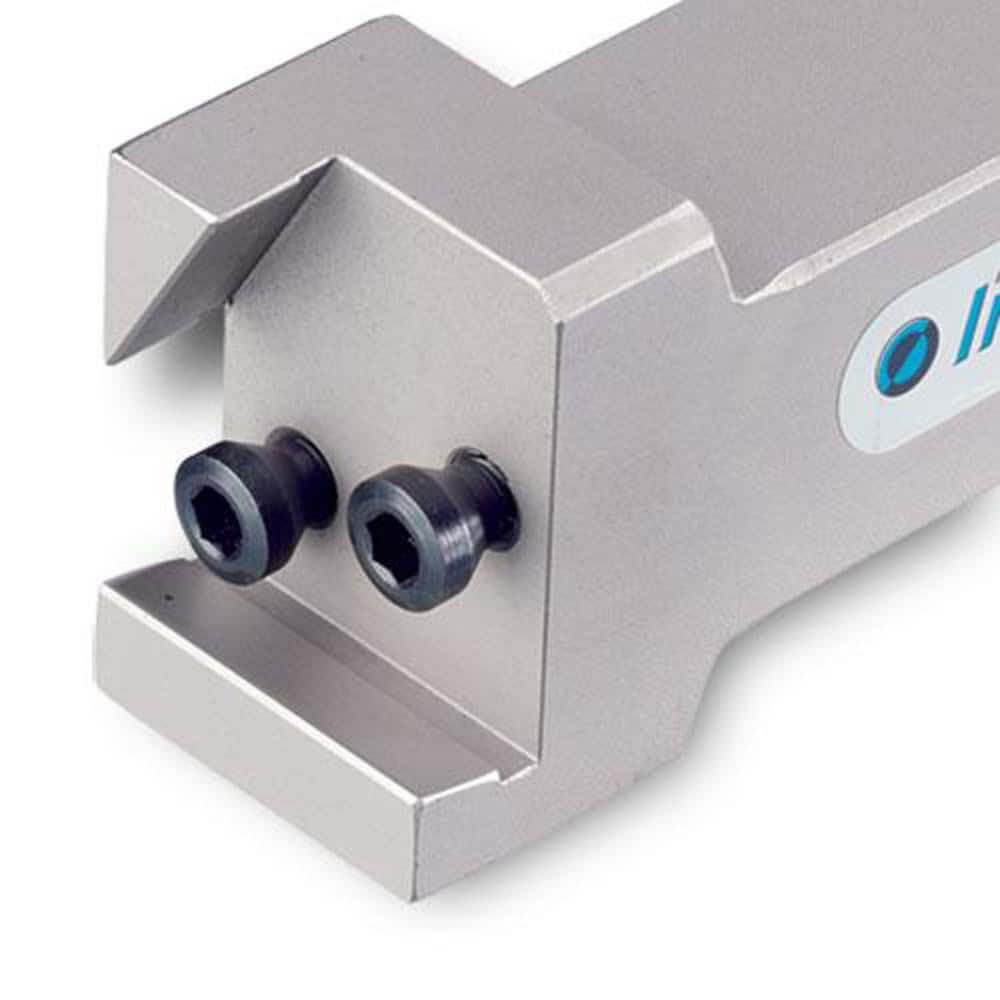

Indexable Grooving Toolholder: TCHPL31.8, 0.1970″ Max Groove Width 0.9840″ Max Depth, Uses TCER 1 to 8, TCFL 1 to 8 & TQCR 1 to 8 Inserts, 1.2500″ Shank Height, 1-1/4″ Shank Width, No
Item #: 13577481
Brand: Ingersoll Cutting Tools
Model #: 6163601
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | 1 to 8 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9840 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Toolholder Style | TCHPL |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | TCER 1 to 8; TQCR 1 to 8; TCFL 1 to 8 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | TCHPR/L |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 0.9800 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
