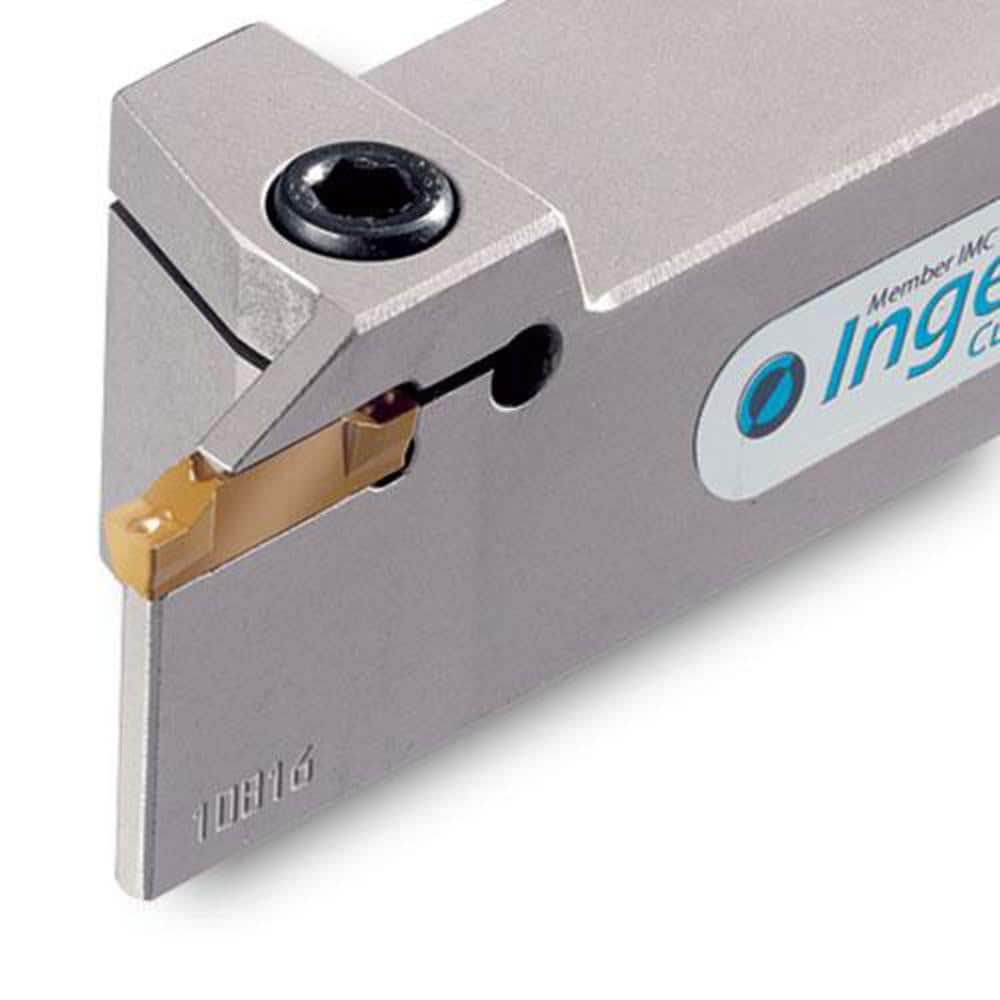

Indexable Grooving Toolholder: TTEL25.4-5T32, 0.1560″ Max Groove Width 1.2600″ Max Depth, Uses TD 5 & TS 5 Inserts, 1.0000″ Shank Height, 1″ Shank Width, No
Item #: 13577812
Brand: Ingersoll Cutting Tools
Model #: 6163669
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 5 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Minimum Groove Width (Decimal Inch) | 0.1880 |
| Toolholder Style | TTEL |
| Maximum Groove Width (Decimal Inch) | 0.1560 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 5; TS 5 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | TTER/L |
| Shank Length (Decimal Inch) | 4.0000 |
| Shank Length (Inch) | 4 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5200 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 2.0000 |
| Head Length (Inch) | 2 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
