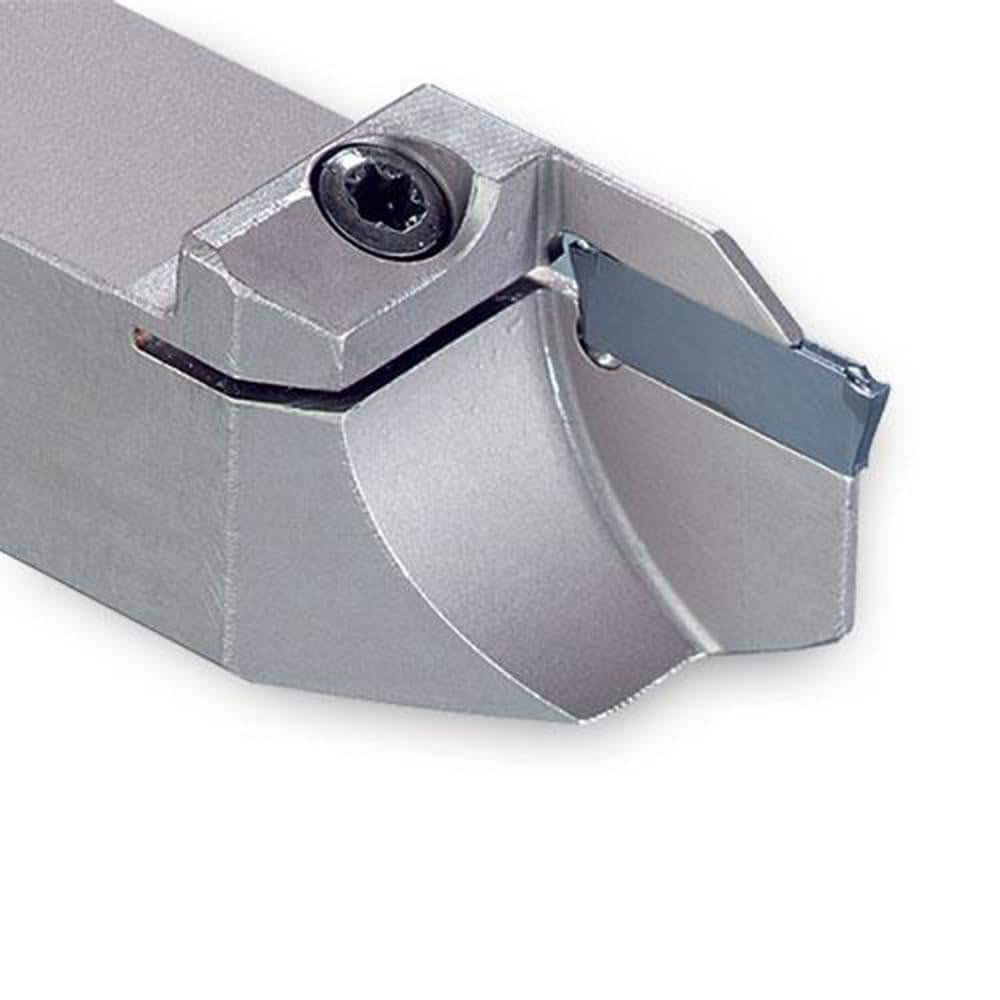

Indexable Grooving Toolholder: TTEL16-32-1.4SH, Uses TDJ 1 Inserts, No
Item #: 13578380
Brand: Ingersoll Cutting Tools
Model #: 6163562
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 1 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Minimum Groove Width (mm) | 1.40 |
| Maximum Groove Width (mm) | 1.00 |
| Toolholder Style | TTEL |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TDJ 1 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Series | TTER/L-SH |
| Shank Length (mm) | 101.00 |
| Overall Length (mm) | 125.00 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Maximum Workpiece Diameter (mm) | 32.00 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Head Length (mm) | 24.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
