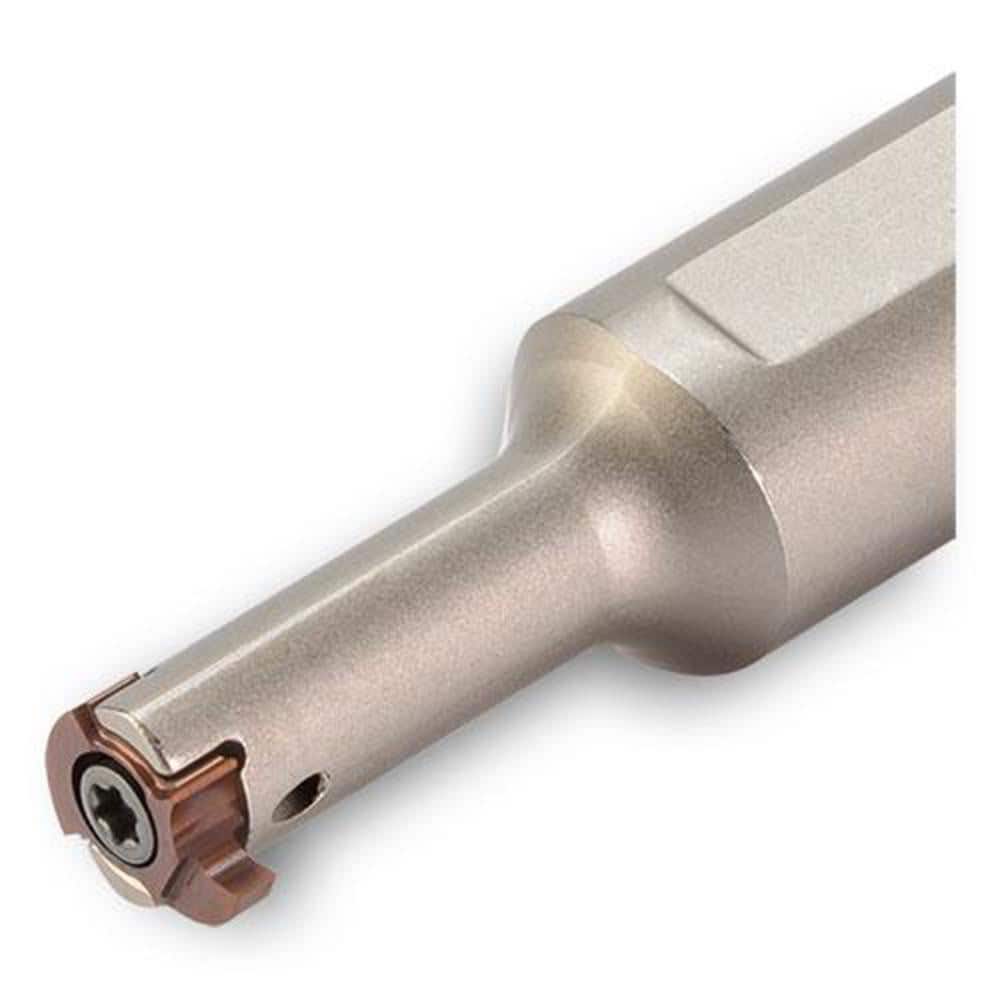

Indexable Grooving Toolholder: TMIHN12.7-16-8, 0.0590″ Max Depth, Uses TMIS 8 Inserts, Through Coolant
Item #: 13578406
Brand: Ingersoll Cutting Tools
Model #: 6210677
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 0.5 to 2 |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Toolholder Style | TMIHN |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | TMIS 8 |
| Series | TMIHN |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Center to Cutting Edge (Decimal Inch) | 0.1850 |
| Minimum Hole Diameter (Decimal Inch) | 0.3940 |
| Head Length (Decimal Inch) | 0.6300 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
