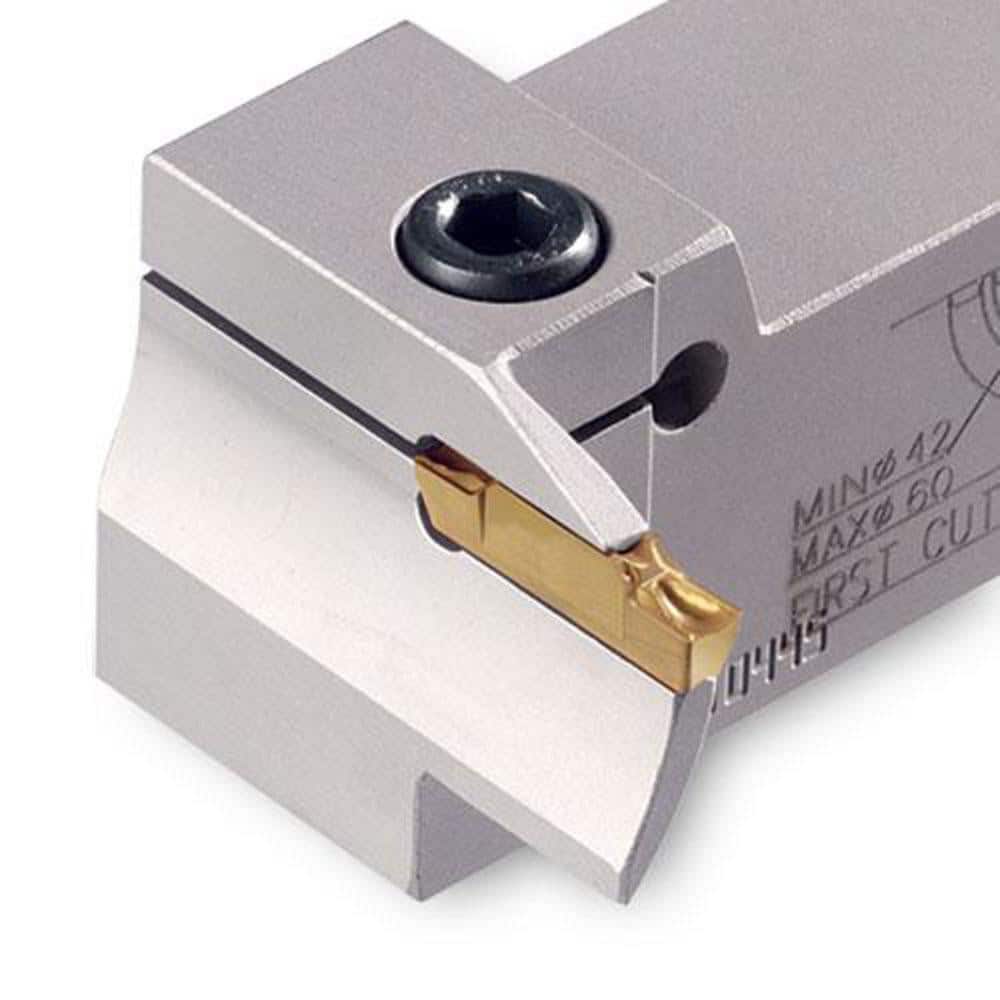

Indexable Grooving Toolholder: TTFPR25.4-35-3, 0.0870″ Max Groove Width 0.3900″ Max Depth, Uses TDX 3 Inserts, 1.0000″ Shank Height, 1″ Shank Width, No
Item #: 13578760
Brand: Ingersoll Cutting Tools
Model #: 2830153
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | 3 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | TTFPR |
| Maximum Groove Width (Decimal Inch) | 0.0870 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TDX 3 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | TTFPR/L |
| Shank Length (Decimal Inch) | 5.2900 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5700 |
| Maximum Overhang (Inch) | 1.5700 |
| Minimum Hole Diameter (Decimal Inch) | 1.1400 |
| Head Length (Decimal Inch) | 0.7100 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
