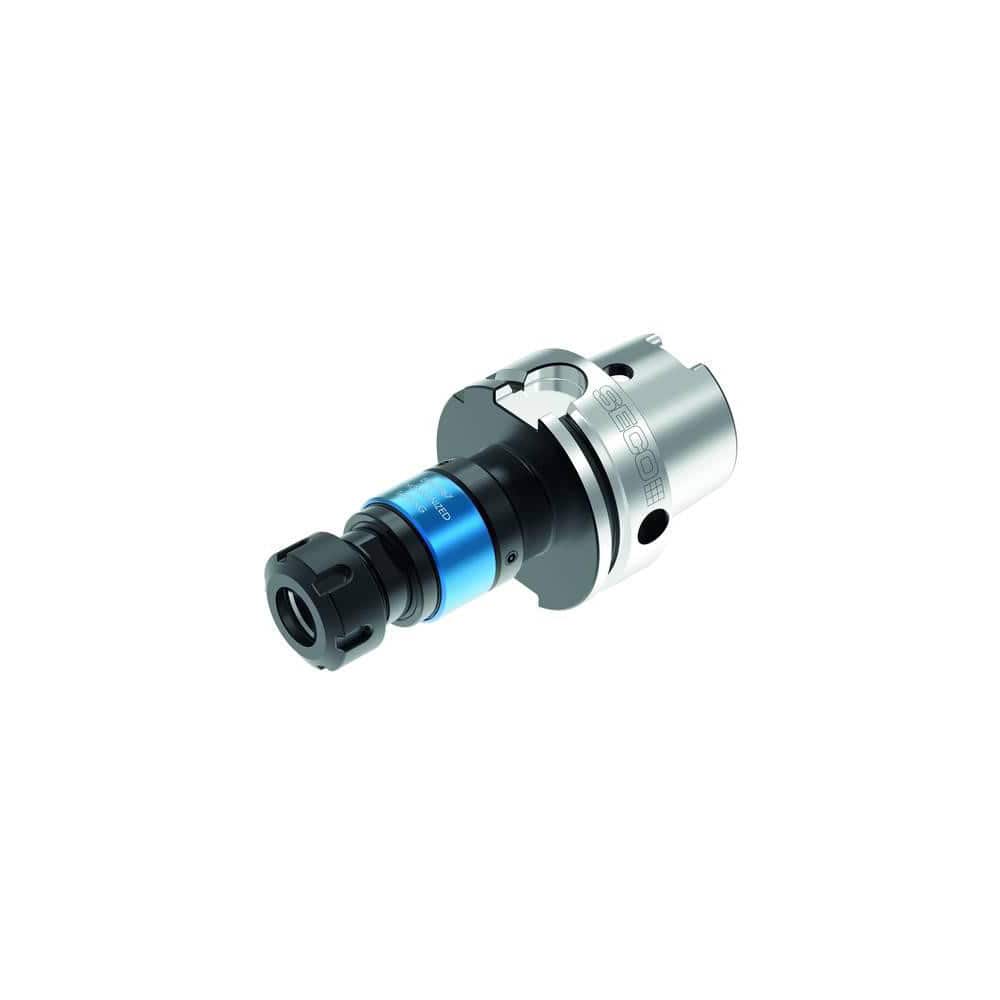

Collet Chuck: 0.236 to 0.59″ Capacity, ER Collet, Taper Shank 4.823″ Projection, Through Coolant
Item #: 13658406
Brand: Seco
Model #: 02926955
Product Specifications
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Taper |
| Taper Size | HSK63A |
| Projection (Decimal Inch - 4 Decimals) | 4.8230 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.2360 |
| Maximum Collet Capacity (Decimal Inch) | 0.5900 |
| Overall Length (mm) | 6.08 |
| Overall Length (Decimal Inch) | 6.0800 |
| Actuator Type | Wrench |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.6540 |
| Shank Length (Decimal Inch) | 1.25 |
