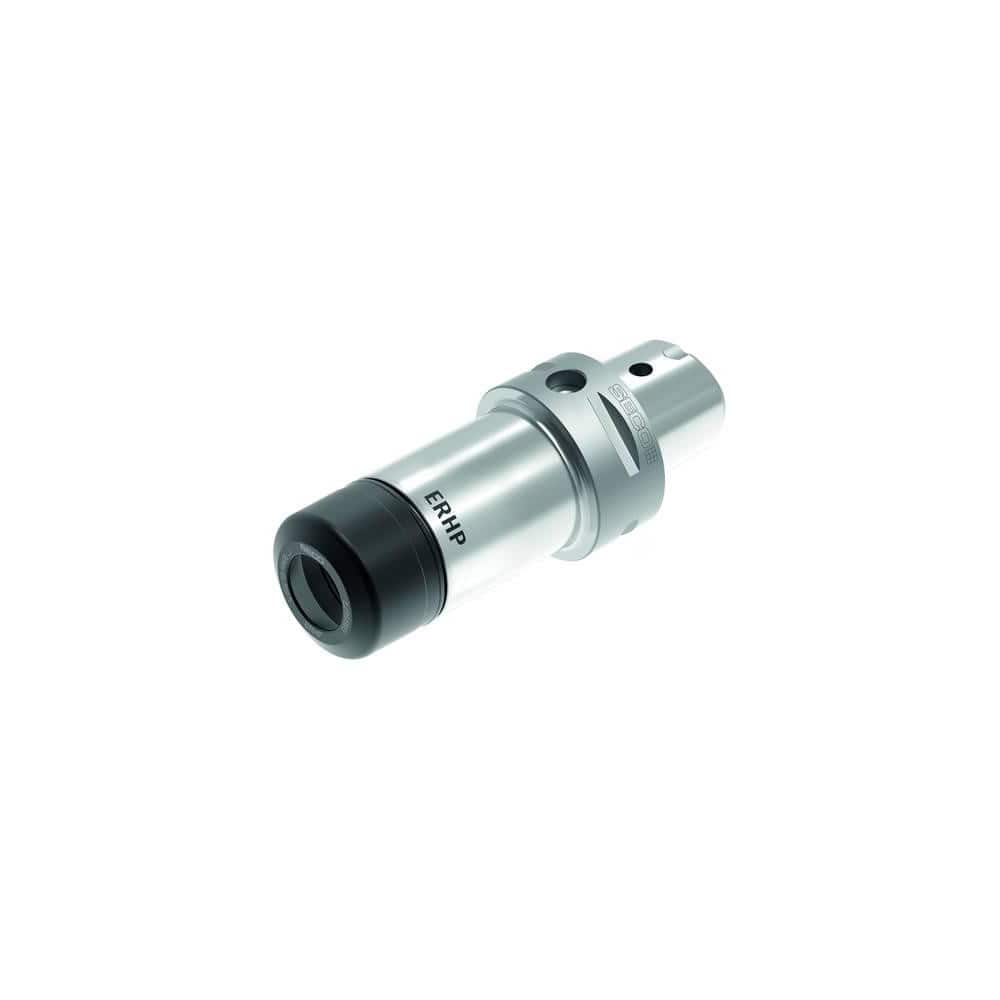

Collet Chuck: 0.039 to 0.276″ Capacity, ER Collet, Modular Connection Shank 1.772″ Projection, Through Coolant
Item #: 13659008
Brand: Seco
Model #: 02882777
Product Specifications
| Collet System | ER |
| Collet Series | HP11 |
| Shank Type | Modular Connection |
| Modular Connection Size | C3 |
| Projection (Decimal Inch - 4 Decimals) | 1.7720 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0390 |
| Maximum Collet Capacity (Decimal Inch) | 0.2760 |
| Overall Length (mm) | 2.52 |
| Overall Length (Decimal Inch) | 2.5200 |
| Actuator Type | Wrench |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.6300 |
| Shank Length (Decimal Inch) | 0.74 |
