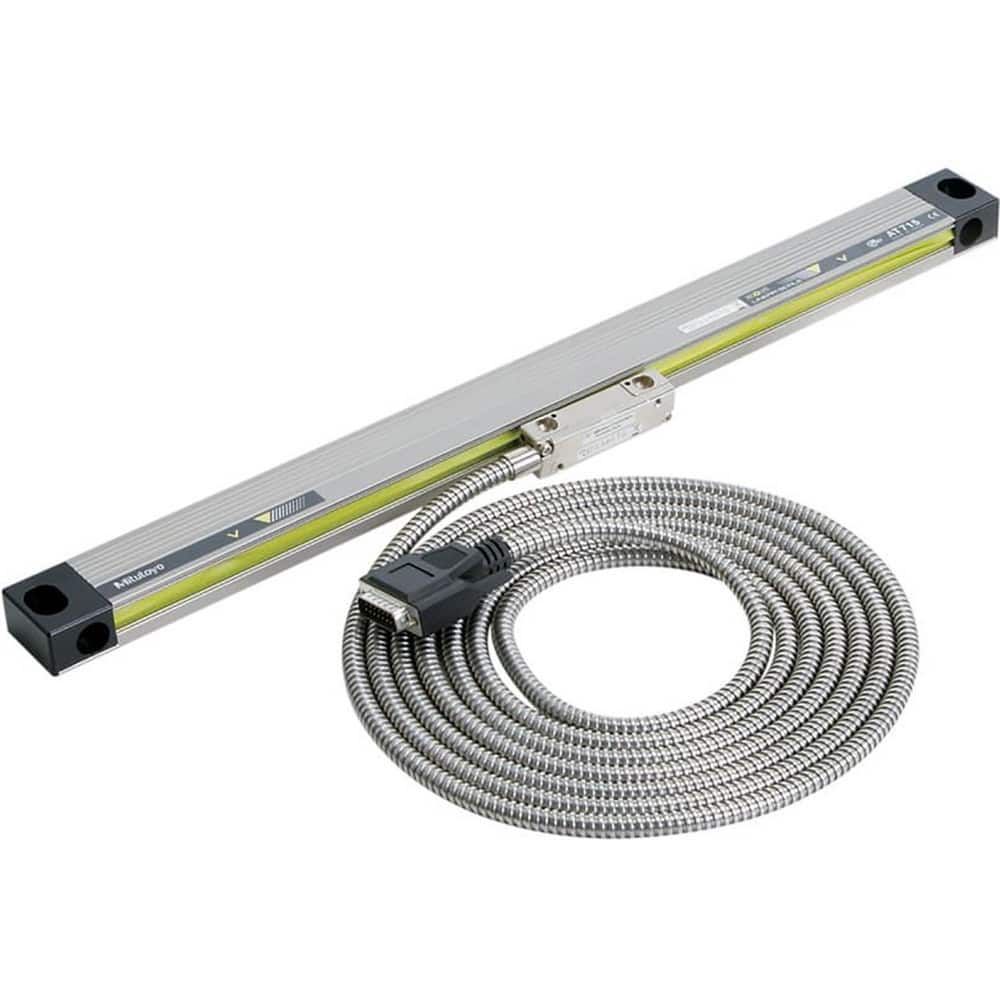

68″ Max Measuring Range, 1 µm Resolution, 75″ Scale Length, Electromagnetic DRO Linear Scale 7 µm Accuracy, IP67, 5,000' Cable Length, 0 to 45°C, Series AT715
Item #: 13692751
Brand: Mitutoyo
Model #: 539-824R
Product Specifications
| Scale Type | Electromagnetic |
| Maximum Measuring Range (Decimal Inch) | 68.5000 |
| Maximum Measurement | 68.00 |
| Maximum Measuring Range (mm) | 1740.00 |
| Resolution (mm) | 0.020/0.010/0.004/0.002 |
| Resolution (Decimal Inch) | 0.002/0.0010/0.0005/0.0004/0.0002/0.0001 |
| Resolution (Micron) | 1.00 |
| Resolution | 0.002/0.0010/0.0005/0.0004/0.0002/0.0001 in; 0.020/0.010/0.004/0.002 mm; 1.00 ?m |
| Scale Length (mm) | 1898.00 |
| Accuracy (micrometer) | 7.00 |
| Ip Rating | IP67 |
| Cable Length (Inch) | 196.8500 |
| Operating Temperature Range (C) | 0 to 45 |
| Storage Temperature Range (C) | -20 to 70 |
