2 Axis, 36″ X-Axis Travel, 16″ Y-Axis Travel, 6″ Travel, Milling DRO System 0.01mm/0.005mm/0.002mm/0.001mm Resolution, 7+13L0/1000 µm Accuracy, LED Display
Item #: 13692785
Brand: Mitutoyo
Model #: 64PKA059A
Product Specifications
| Machine Compatibility | Milling |
| Calculator Function | Yes |
| Programmable Memory | Yes |
| X-axis Travel | 36 in |
| Y-axis Travel | 16 in |
| Scale Type | Electromagnetic |
| Accuracy (micrometer) | 7+13L0/1000 |
| Display Type | LED |
| Resolution (Decimal Inch) | 0.001/0.0005/0.0002/0.0001/0.00005 |
| Resolution (mm) | 0.010/0.005/0.002/0.001 |
| Color Display | Yes |

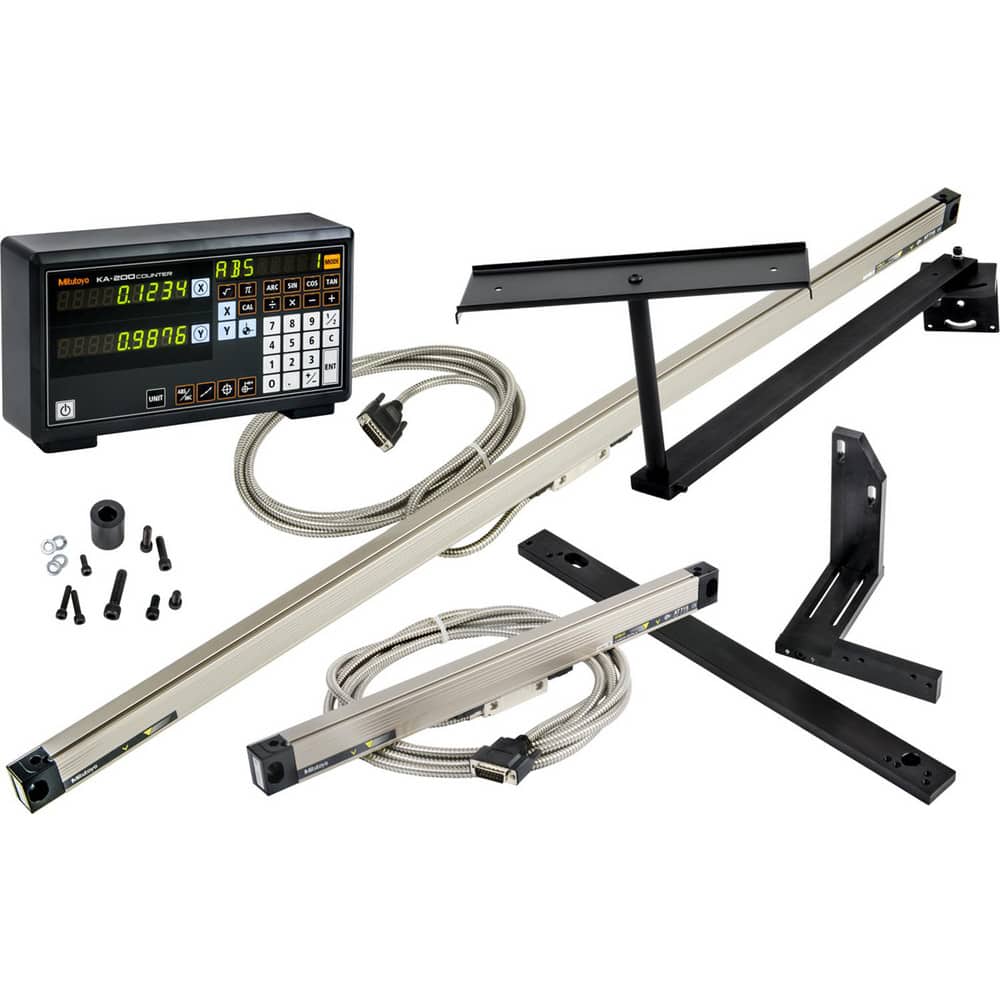

| Includes | Brackets for Scales; Display Arm Kit; KA Counter; AT715 Linear Scale/AT715-150mm (6") for Z axis |
| Number Of Axes | 3 |
| Y Axis Travel Length (Decimal Inch) | 16 |
| X Axis Travel Length (Decimal Inch) | 36 |
